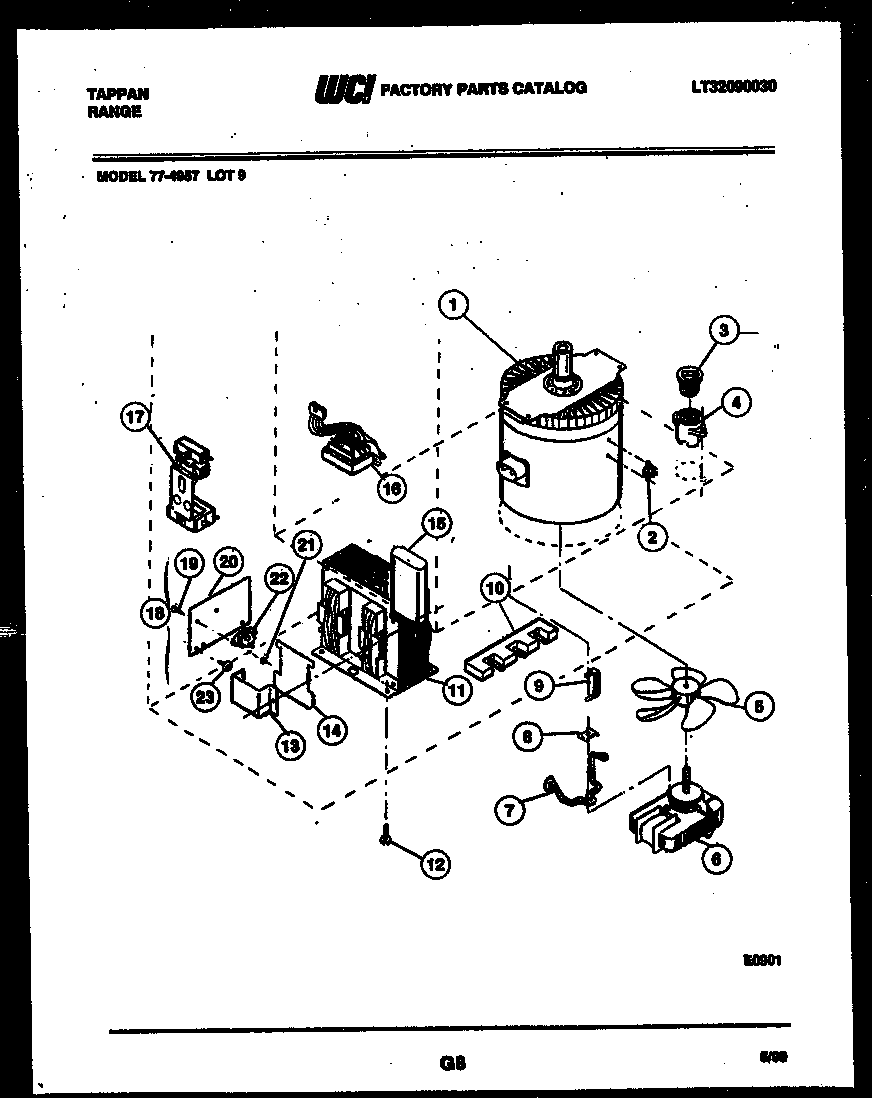

77-4957-00-09 09 – POWER CONTROL

Products

Position	Product
*39069	WCI 08037895
*39068	WCI 5308037894
*39068	SCREW TERM (2) (NON-ILLUSTRATED)
*39068	WCI 5308010494
1A	WCI 5308008918
1	WCI 5303204035
2	SWITCH
2A	SCREW - SWITCH (2) (NON-ILLUSTRATED)
3	FUSE
4	SOCKET
5	WCI 5303011668
6	WCI 5303011677
7	ROD MOTOR (2)
8	CHANNEL
9	DIODE HIGH VOLTAGE
10A	WCI 08067783
10	5304409888 Frigidaire Oven Terminal Block with Hardware
11	TRANSFORMER H.V.
12	SCREW - TRANS (4) (NON-ILLUSTRATED)
13	RETAINER
14	SHIELD CAPACITOR
15	CAPACITOR - HV
16	WCI 5308010486
17	SWITCH KIT
17A	WCI 636T095P16
19	SCREW - TRIAC
19	WCI 5308008971
20	WCI 554T338F02
21	NUT (2)
22	TRIAC
23	SCREW-WRAPPER (13)
