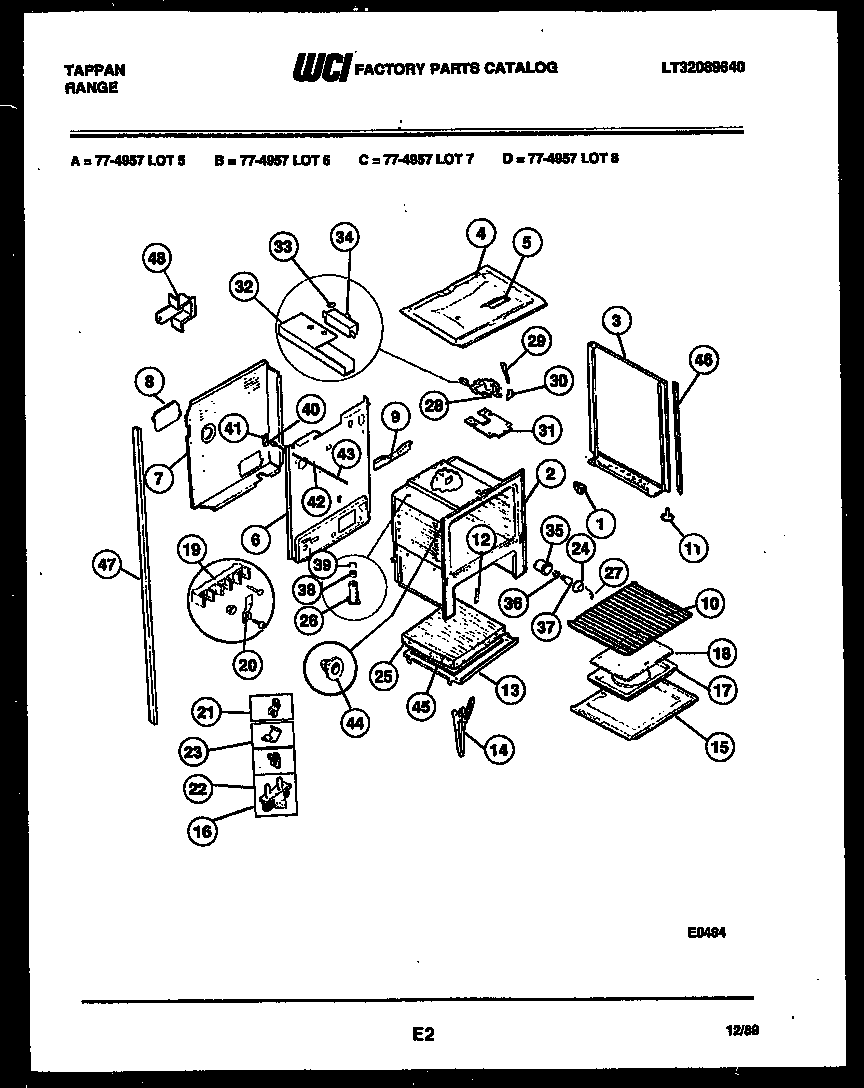

77-4957-08-08 04 – LOWER BODY PARTS

Products

PositionProduct
1SPACER, BODYSIDE (8)
3WCI 3201000
3AWCI 3201001
4WCI 3051109
5WCI 3131101
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16FUSE-THERMAL CUTOUT
17PAN, BROILER
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
21CLIP-TUBING (2)
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25INSULATION, BOTTOM
26WCI 3051344
27ENUT-HEX BRASS (6) (NON-ILLUSTRATED)
27AINSULATION, OVEN WRAPPER
27DSCREW-HNG MTG (6) (NON-ILLUSTRATED)
27RETAINER-GLASS
27BINSUL OVEN BACK (NON-ILLUSTRATED)
27F3203550 Frigidaire Oven Plug
28WCI 3051258
29WCI 3051473
30WCI 358T158S02
30ASCREW-SET KNOB MTG (NON-ILLUSTRATED)
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33WCI 241T001P01
34SWITCH-LATCH
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 3051737
39RETAIN, CATALYST
40WCI 3014246
41BRKT LIGHT SWITCH
42ROD-LIGHT SWITCH
43WCI 3051251
44BUTTON-REMOVE LIGHT SWITCH
45AWCI 3131305
45WCI 3200848
45B3131903 Frigidaire Door/Drawer Bumper
46TRIM-VERT B/S (2)
47WCI 3051723
47EANTI-TIP KIT (NOT ILLUSTRATED)
47C316403803 Frigidaire Insulation
47AWCI 3051724
47DFASTENER-EDGE MTG (NOT ILLUSTRATED)
47BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48WCI 3203582
