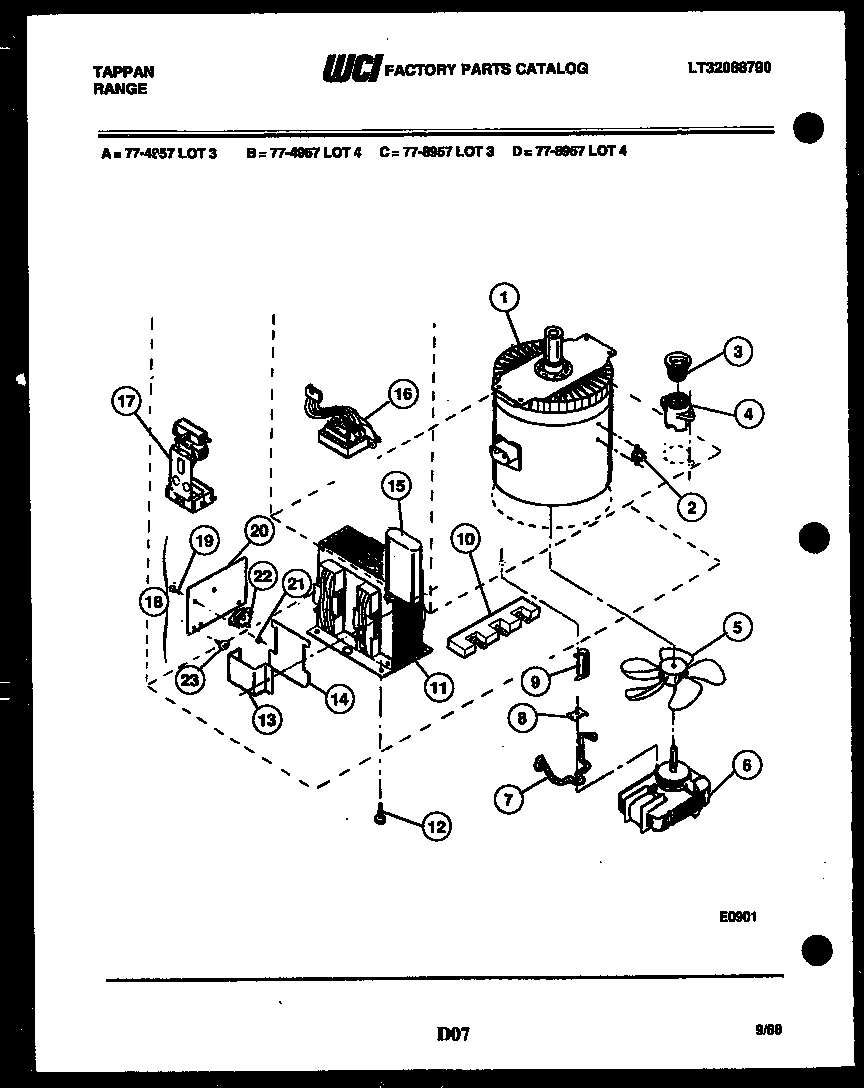

77-4957-66-03 09 – POWER CONTROL

Products

Position	Product
1	WCI 423T016P02
1A	NUT (NON-ILLUSTRATED)
2A	WCI 636T074P10
2	SWITCH
3	FUSE
4	SOCKET
5	FAN BLADE TRANSFORMER
6	MOTOR FAN
7	ROD MOTOR (2)
8	CHANNEL
9	DIODE HV
10	5304409888 Frigidaire Oven Terminal Block with Hardware
10A	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
11	TRANSFORMER HV
12	SCREW, TRANS (4)
12	SCRW. TRANSFORMR. MTG. 1/4-20 X 1/2`` (4)
13	RETAINER
14	SHIELD CAPACITOR
15	CAPAC HI VOLT. NON PCP
16	TRANSFORMER LV
17	SWITCH KIT (+)
17A	WCI 636T095P16
18	TRIAC, HEAT SINK
19	SCREW (2)
19	WCI 636T095P47
20	WCI 554T338F02
21	NUT (2)
22	WCI 742T005P01
23D	WCI 3091206
23A	HARNESS MAIN
23	SCREW (8) (NON-ILLUSTRATED)
23C	SCREW TERM (2) (NON-ILLUSTRATED)
23B	WCI 299T405S203
