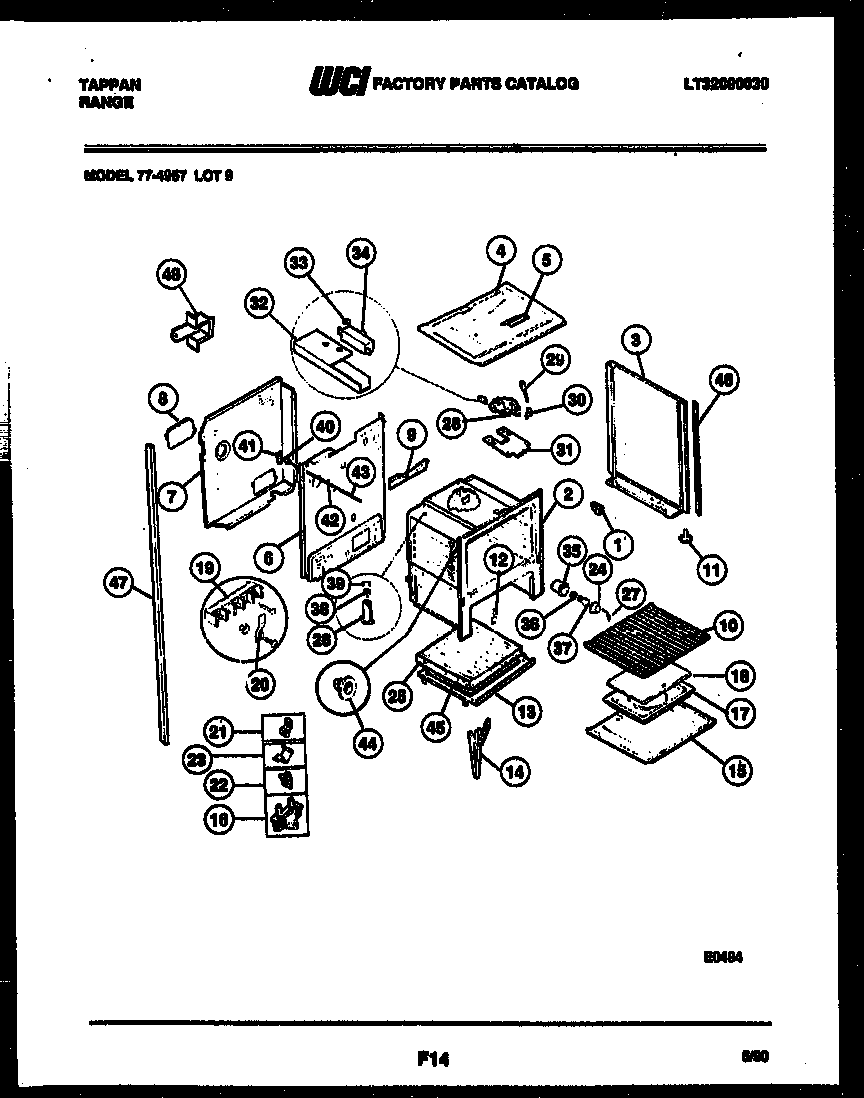

77-4957-66-09 04 – UPPER BODY PARTS

77-4957-66-09 04 – UPPER BODY PARTS

Written by

in

77-4957-66-09 04 – UPPER BODY PARTS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
3PNL B/S-LH (WHEAT)
3PNL B/S – BLACK RH
3PNL B/S – BLACK LH
3PNL B/S-RH (WHEAT)
4WCI 08067749
5WCI 3131101
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16WCI 5303051385
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
21WCI 08067754
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25INSULATION, BOTTOM
26WCI 3051344
27DSCREW – CHANNEL MTG (NON-ILLUSTRATED)
27BINSUL OVEN BACK (NON-ILLUSTRATED)
27RETAINER-GLASS
27F3203550 Frigidaire Oven Plug
27EWCI 08067783
27AINSULATION, OVEN WRAPPER
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 5308010597
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
35WCI 3131363
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39RETAIN, CATALYST
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42ROD-LIGHT SWITCH
43WCI 08067758
44WCI 08067750
45WCI 3200848
45B3131903 Frigidaire Door/Drawer Bumper
45AWCI 3131305
46TRIM – VERTICAL B/S (2)
47B316403803 Frigidaire Insulation
47WCI 5303208642
47DANTI-TIP KIT (NOT ILLUSTRATED)
47CFASTENER-EDGE MTG (NOT ILLUSTRATED)
47TUBE-POST LH
47ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48WCI 3203582
