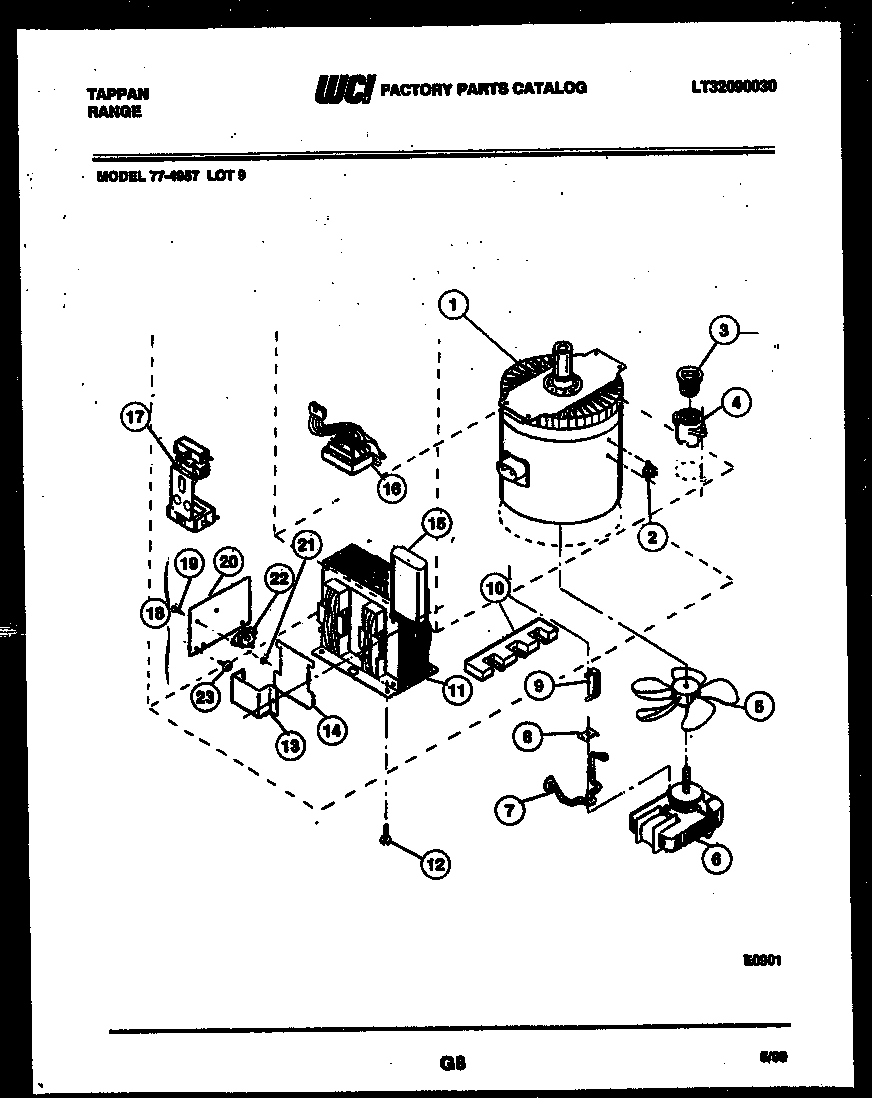

77-4957-66-09 09 – POWER CONTROL

77-4957-66-09 09 – POWER CONTROL

Written by

in

77-4957-66-09 09 – POWER CONTROL

Products

PositionProduct
*39069WCI 08037895
*39068WCI 5308037894
*39068SCREW TERM (2) (NON-ILLUSTRATED)
*39068WCI 5308010494
1AWCI 5308008918
1WCI 5303204035
2SWITCH
2ASCREW – SWITCH (2) (NON-ILLUSTRATED)
3FUSE
4SOCKET
5WCI 5303011668
6WCI 5303011677
7ROD MOTOR (2)
8CHANNEL
9DIODE HIGH VOLTAGE
10AWCI 08067783
105304409888 Frigidaire Oven Terminal Block with Hardware
11TRANSFORMER H.V.
12SCREW – TRANS (4) (NON-ILLUSTRATED)
13RETAINER
14SHIELD CAPACITOR
15CAPACITOR – HV
16WCI 5308010486
17SWITCH KIT
17AWCI 636T095P16
19SCREW – TRIAC
19WCI 5308008971
20WCI 554T338F02
21NUT (2)
22TRIAC
23SCREW-WRAPPER (13)
