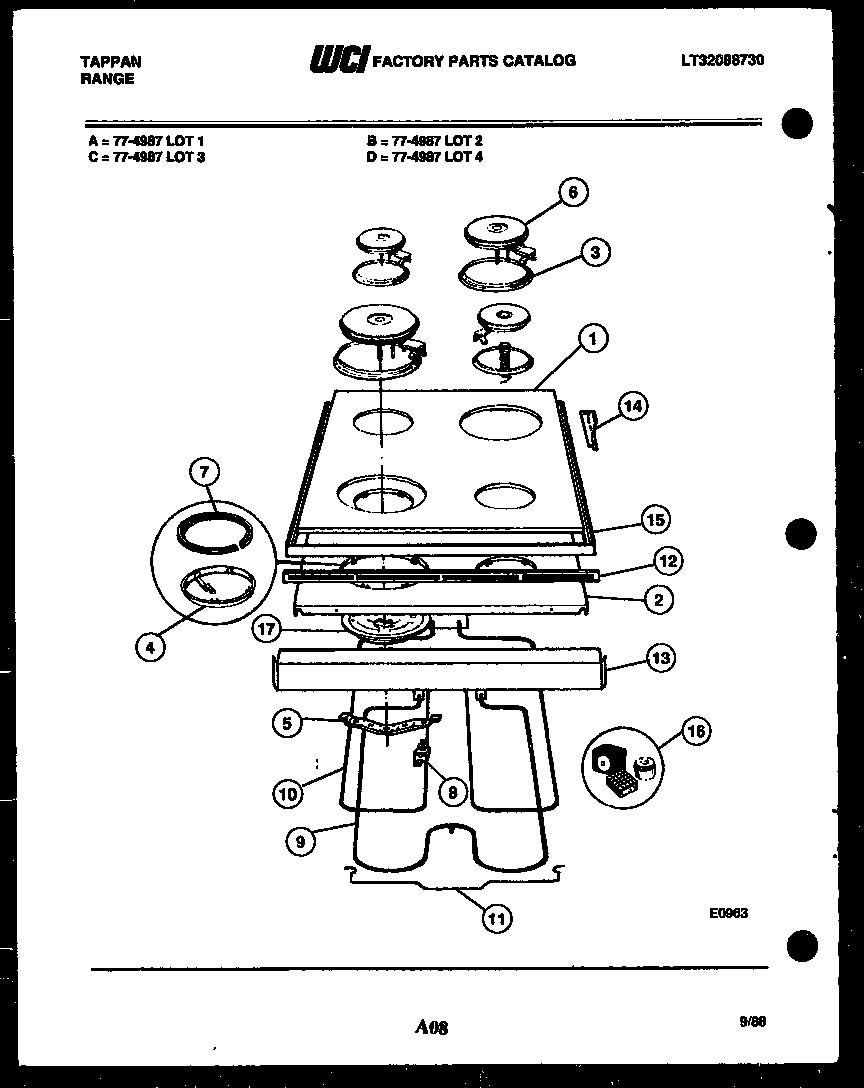

77-4987-00-01 06 – COOKTOP AND BROILER PARTS

77-4987-00-01 06 – COOKTOP AND BROILER PARTS

Written by

in

77-4987-00-01 06 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051156
2WCI 3018329
3BTRIM-RING INNER LARGE
3ATRIM-RING OUTER MED
3TRIM-RING OUTER SMALL (2)
4ATRIM-RING INNER MED
4TRIM-RING INNER SMALL (2)
4BWCI 3051339
5CHANNEL-TOP ELEMENT MOUNTING SMALL (2)
5BCHANNEL-TOP ELEMENT MOUNTING MED.
5ACHANNEL-TOP ELEMENT MOUNTING LARGE
6BWCI 3051144
6ELEMENT-TOP SMALL (2)
6AGLASS-FRONT-BLACK
7WCI 3018330
7ASEAL-TOP ELEMENT MED
7BSEAL-TOP ELEMENT LARGE
8WCI 3051313
9ELEMENT, OVEN BAKE
105303051140 Frigidaire Broil Element
11316203400 Frigidaire Oven Support
12WCI 740T390P01
13WCI 3051870
14ABRKT MAIN TOP HNG RH
14BRKT MAIN TOP HNG LH
15WCI 3051325
16CLEANER-ELEMENT
17SHIELD-ELEMENT AUTO
