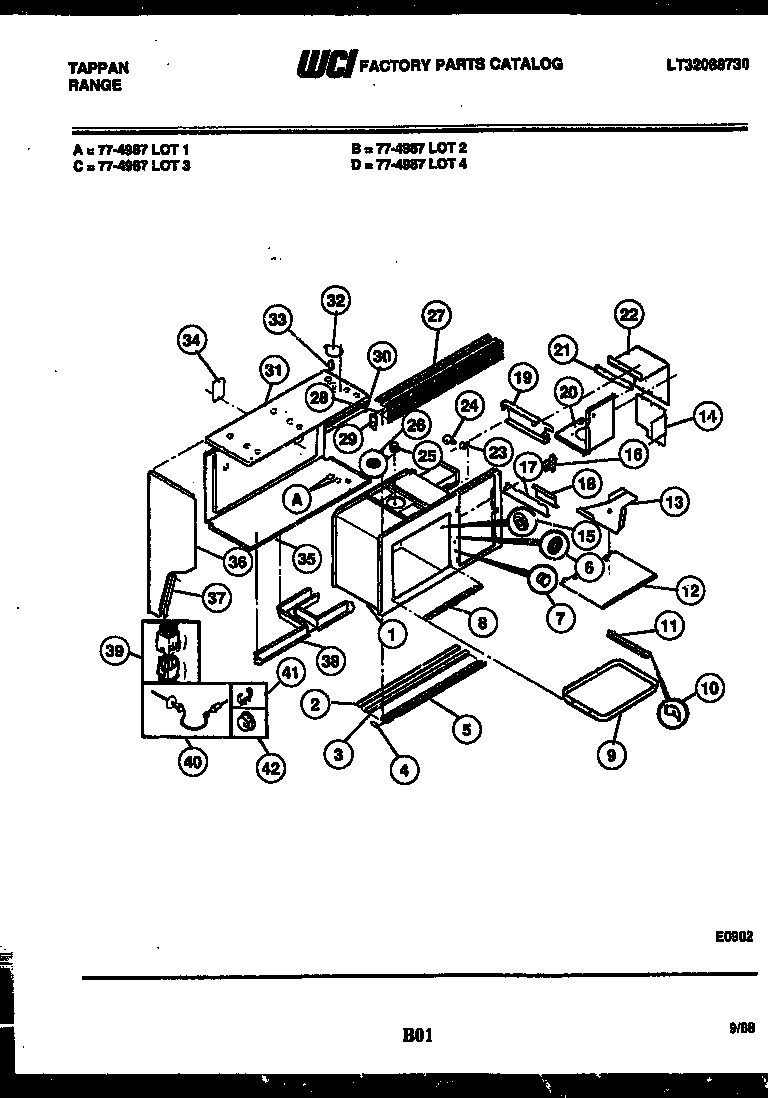

77-4987-00-01 09 – UPPER BODY PARTS

Products

Position	Product
*18610	WCI 241T017P154
*18609	FASTNR-8A U-TYPE
*18609	FASTNR. HNG. MTG. (4)
*18610	WCI 331T117P01
*18610	FASTNR. PUSH
*18610	PLUG BUTTN. RACK GLIDES (8)
*18609	FASTNR WIRE CLIP
*18609	LABEL COOKING GUIDE (NON-ILLUSTRATED)
*18610	NUT STIRRER SHAFT TO FAN
*18610	WCI 557T027P01
*18610	SCREW DUCT (2) (NON-ILLUSTRATED)
*18610	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
*18610	FASTNR PURSELOCK
2	SEAL
3	COVER, SEAL
4	WCI 123T082P01
5	TRIM – BOTTOM
5A	SCREW (8) (NON-ILLUSTRATED)
6	MEDALLION DR STRIKE
7	GROMMET DOOR
8	TRIM FRONT
9	TRAY GLASS
10	CLIP TRAY (4)
11	GLIDE, TRAY (2)
12	WCI 174T242P01
13	WCI 239T043S02
14	COVER DUCT EXT.
15	WCI 479T084P01
16	RECEPTACLE
17	WCI 088T480P01
18	WCI 008T378F11
19	WCI 136T321F02-18
20	WCI 211T044F04
21	BRACKET
22	COVER DUCT
23	WCI 662T027P02
24	BULB
25	WCI 115T463P01
26	WASHER
27	WCI 612T101F01
28	TRIM-VENT TOP
29	CAP END LH
29A	CAP END RH
30A	WCI 655T307F03-18
30	WCI 655T307F02
31	PANEL TOP
32	WCI 174T204F01
33	RECEPT HOOD ASSY.
34	COVER LIGHT
35	WRAPPER
36	WCI 3131907
36A	WCI 3131908
37	WCI 740T309F01
37A	WCI 740T309F02
38	WCI 211T073S01
39	PLUG KIT
39	PLUG DISCONN. KIT OVN. ELMNT. WHITE
40	WCI 115T563P03
41	FASTNR. STANDOFF (4)
42	BUSING
