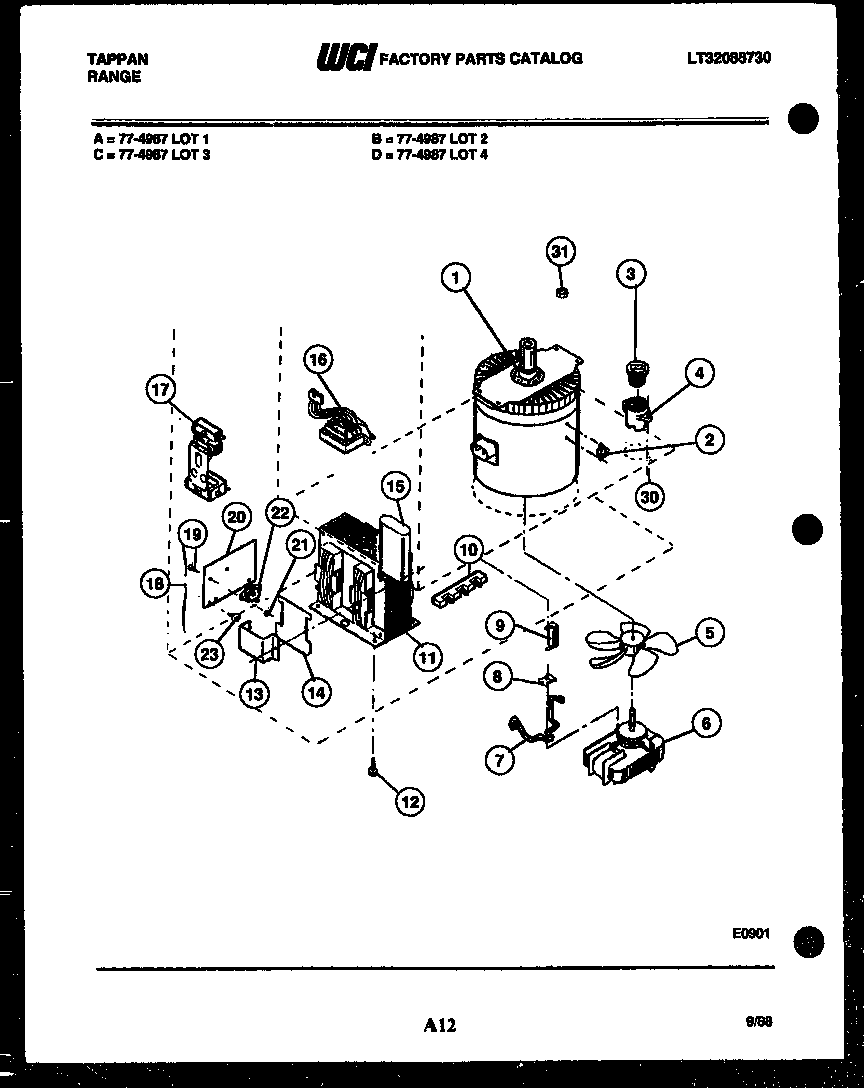

77-4987-00-02 08 – POWER CONTROLadmin2025-04-26T08:49:23+00:0077-4987-00-02 08 – POWER CONTROL ProductsPositionProduct1WCI 423T015P022SWITCH3FUSE4SOCKET5FAN BLADE TRANSFORMER6MOTOR FAN7ROD MOTOR (2)8CHANNEL9DIODE HV105304409888 Frigidaire Oven Terminal Block with Hardware11TRANSFORMER HV12SCREW, TRANS (4)13RETAINER14SHIELD CAPACITOR15CAPAC HI VOLT. NON PCP16TRANSFORMER LV17SWITCH KIT (+)18TRIAC, HEAT SINK19WCI 636T095P4720WCI 554T338F0221NUT (2)22WCI 742T005P0123CWCI 636T095P1623E(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)23AHARNESS MAIN23DSCREW (8) (NON-ILLUSTRATED)23BWCI 309120623AWCI 299T405S20330WCI 636T074P1031NUT (NON-ILLUSTRATED)
