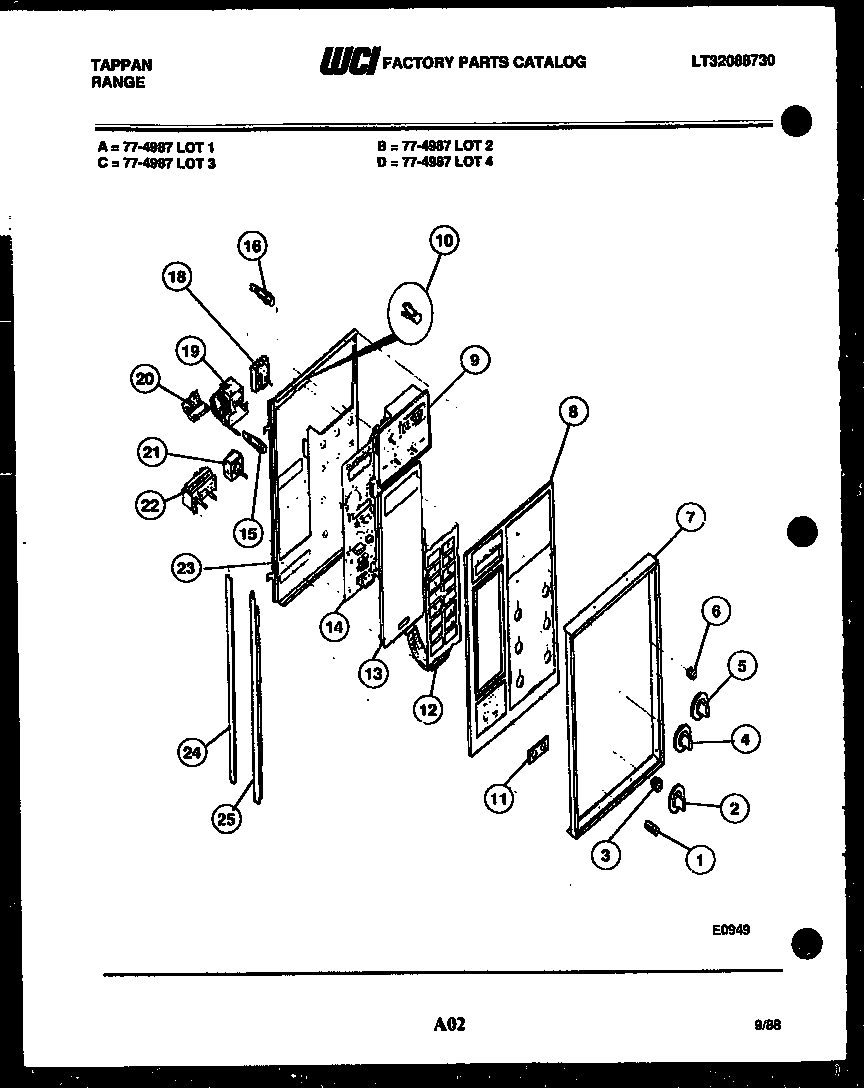

77-4987-00-03 02 – CONTROL PANEL

Products

Position	Product
*18592	SCREW SELECT. SW. (NON-ILLUSTRATED)
*18592	WCI 5303091407
*18592	SCREW BOARD (4)
*18592	SPACER - CONTROL PNL (2)
*18592	SCREW SW PNL. (7)
1	WCI 3091544
2	WCI 3091393
3	BUSHING C/P
4	KNOB-THERMOSTAT UPPER
5A	KNOB-SELECTOR SWITCH 6 POS.
5	WCI 3091406
6	WCI 358T201P01
7	TRIM CONTROL PNL
8	WCI 277T204S15
9	WCI 3091385
10	FASTENER, CLOCK
11	WCI 045T071P01
12	SWITCH TOUCH MEMBRANE
13	PANEL SWITCH
14	CIRCUIT BRD. PRINT.
15	INDICATOR LIGHT (4)
16	INDICATOR-LITE OVN
18	WCI 3051315
19	THERMO-OVEN LOWER
20	PLUG DISCON 9 PIN
21	SWITCH-TOP UNIT
22	SWITCH ON-OFF
23	WCI 3091468
24	SEAL
25	WCI 174T264P03
