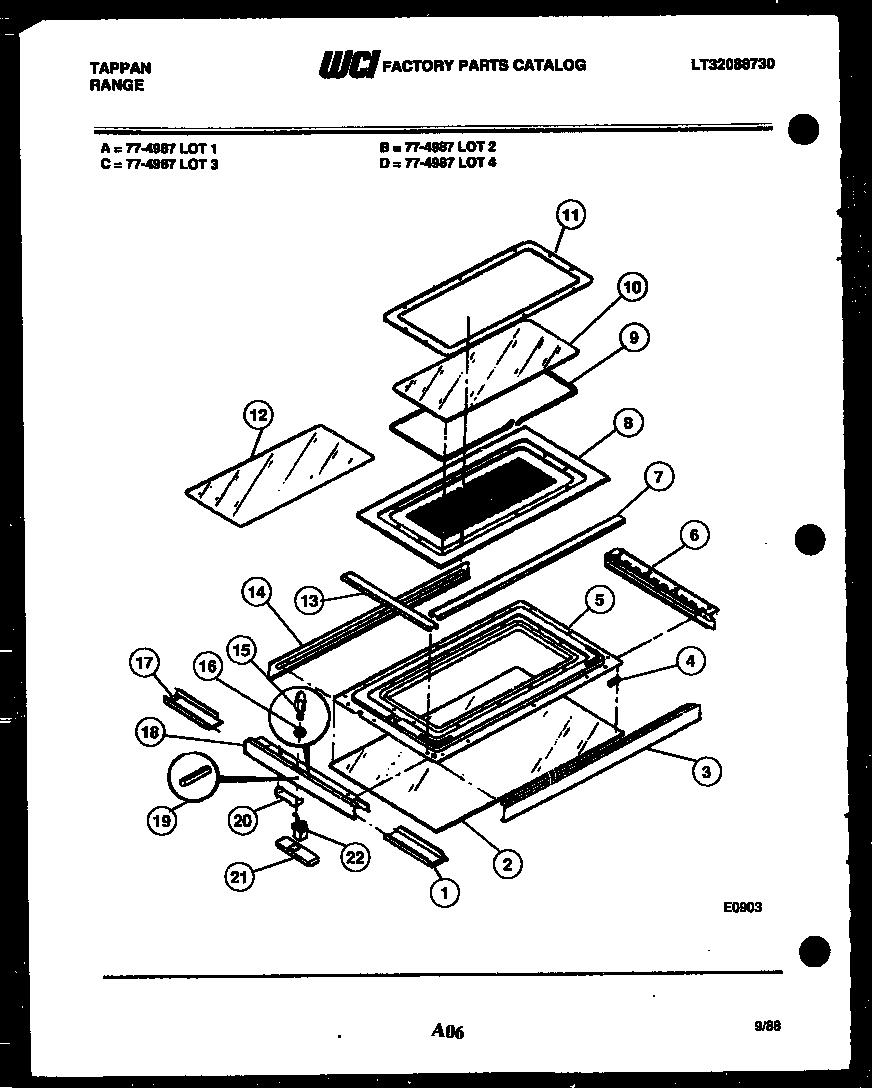

77-4987-00-03 05 – TOP DOOR PARTS – Aparts

77-4987-00-03 05 – TOP DOOR PARTS

Products

Position	Product
*18598	HANDLE - COMPLETE
*18598	SCREW SW PNL. (7)
1	INSERT - DRAWER BTTM
2	WCI 3091382
3	WCI 233T027P02
4	SPACER (4)
5	FRAME
6	EXTRUSION HINGE
7	SEAL
8	WCI 511T038F06-99
9	WCI 707R001P01
10	WCI 276T081P02
11	WCI 612T080F02-08
12	LINER
13	SEAL
14	EXTRUSION
15	SCREW
16	NUT (2)
17	INSERT
18	EXTRUSION
19	ROLL PIN
20	WCI 675T072P02
21	HANDLE KIT
22	WCI 306T008P01
