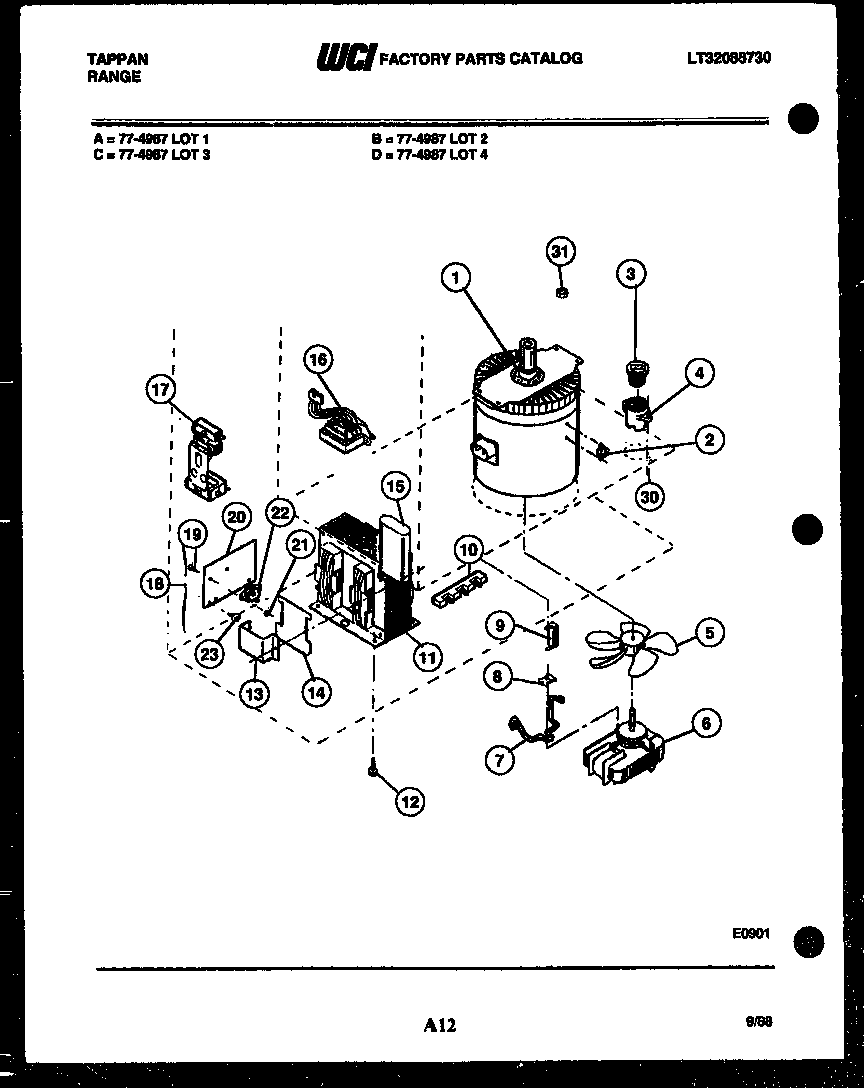

77-4987-00-04 08 – POWER CONTROL

Products

Position	Product
1	WCI 423T015P02
2	SWITCH
3	FUSE
4	SOCKET
5	FAN BLADE TRANSFORMER
6	MOTOR FAN
7	ROD MOTOR (2)
8	CHANNEL
9	DIODE HV
10	5304409888 Frigidaire Oven Terminal Block with Hardware
11	TRANSFORMER HV
12	SCREW, TRANS (4)
13	RETAINER
14	SHIELD CAPACITOR
15	CAPAC HI VOLT. NON PCP
16	TRANSFORMER LV
17	SWITCH KIT (+)
18	TRIAC, HEAT SINK
19	WCI 636T095P47
20	WCI 554T338F02
21	NUT (2)
22	WCI 742T005P01
23C	WCI 636T095P16
23E	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
23A	HARNESS MAIN
23D	SCREW (8) (NON-ILLUSTRATED)
23B	WCI 3091206
23A	WCI 299T405S203
30	WCI 636T074P10
31	NUT (NON-ILLUSTRATED)
