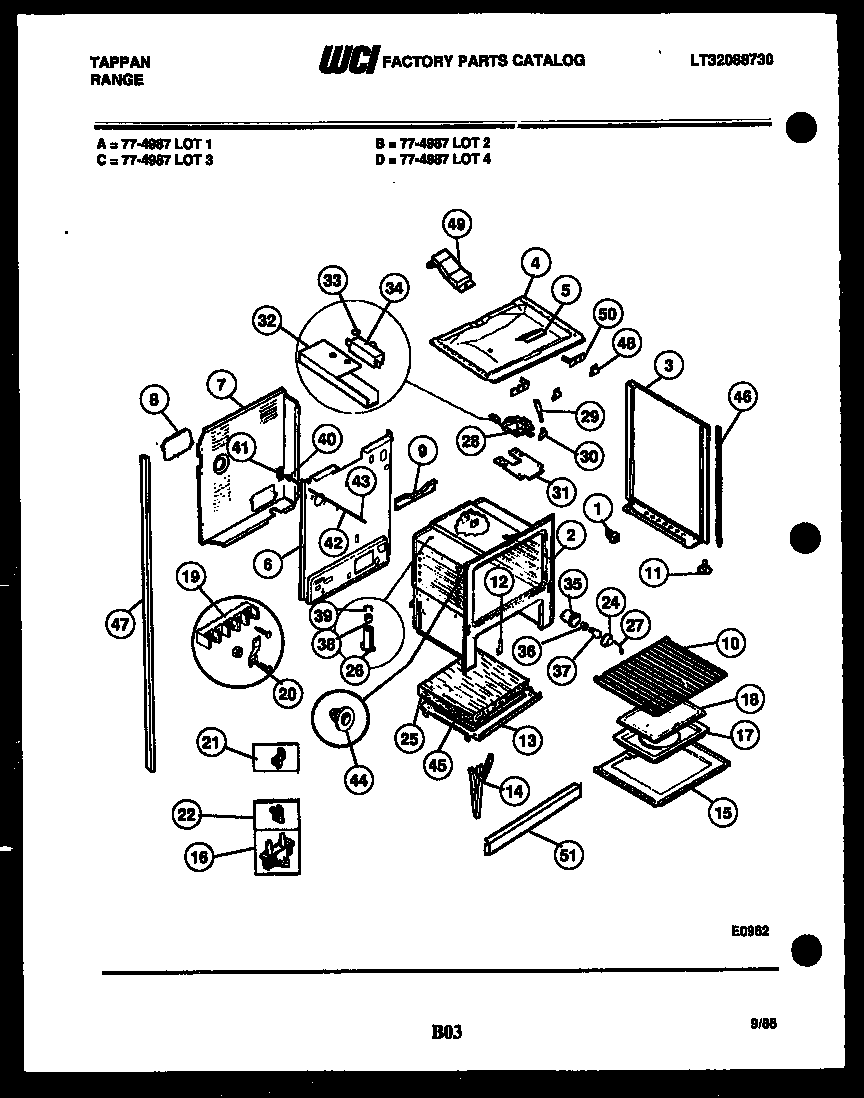

77-4987-00-04 10 – LOWER BODY PARTS

Products

Position	Product
*18618	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*18618	INSULATION, OVEN WRAPPER
*18618	316403803 Frigidaire Insulation
1	SPACER, BODYSIDE (8)
3A	WCI 3201001
3	WCI 3201000
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
24	WCI 3051298
25	INSULATION, BOTTOM
26	TRIM MAIN TOP LH
27A	INSULATION, OVEN TOP
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27	WCI 3131104
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3051258
29	WCI 3131357
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	KNOB, LATCH
31	WCI 3041413
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	SWITCH-LATCH
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	WCI 3014246
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BUTTON-REMOVE LIGHT SWITCH
45A	WCI 3131305
45	WCI 3200848
46	TRIM-VERT B/S (2)
47	WCI 3051723
47A	WCI 3051724
48	3205821 Frigidaire Clip
49	WCI 3051254
50B	WCI 3015337
50	WCI 3051242
50A	WCI 3051243
51	WCI 3051870
