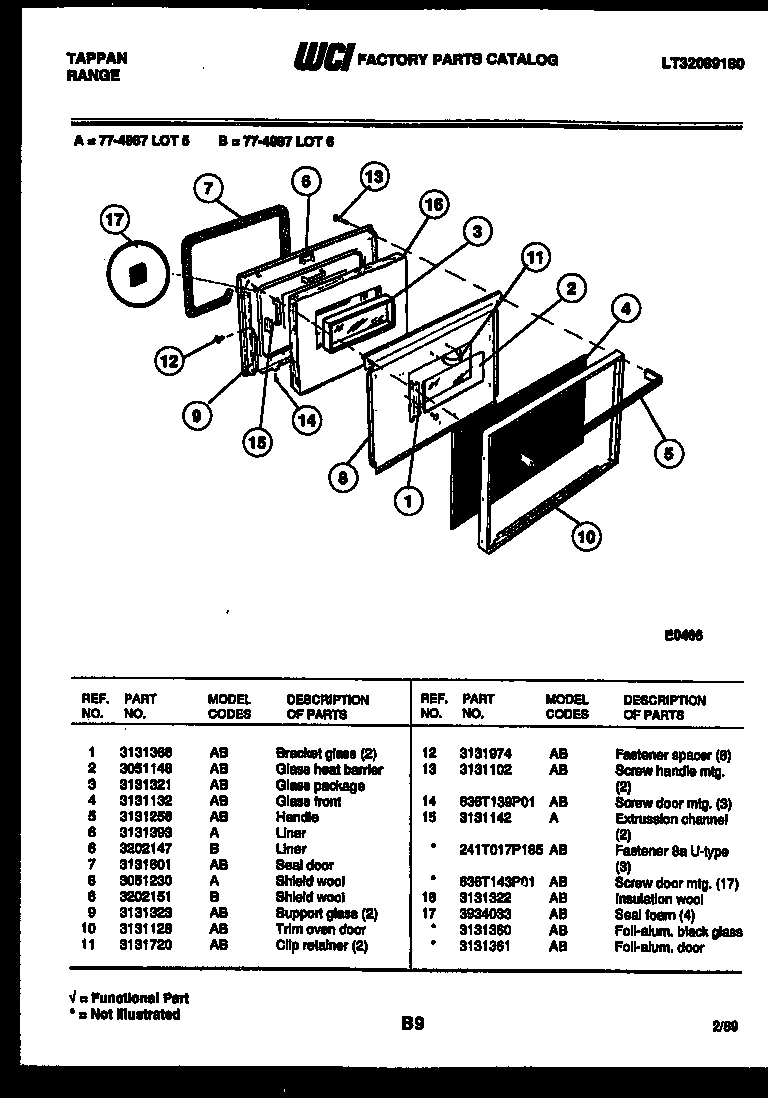

77-4987-00-06 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
*18721	5303208655 Frigidaire Reflector Assembly
*18721	ALUM FOIL-B/G GLASS
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3131321
4	GLASS FRNT
5	WCI 3131256
6	LINER
7	5303131601 Frigidaire Oven Seal
8	WCI 3202151
9	SUPPORT, GLASS
10	WCI 3131128
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	SCREW-HANDLE
14	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
15A	FSTNR 8AU TYPE (3)
15B	5303300265 Frigidaire Oven Screw
16	WCI 3131322
17	SEAL, FOAM (4)
