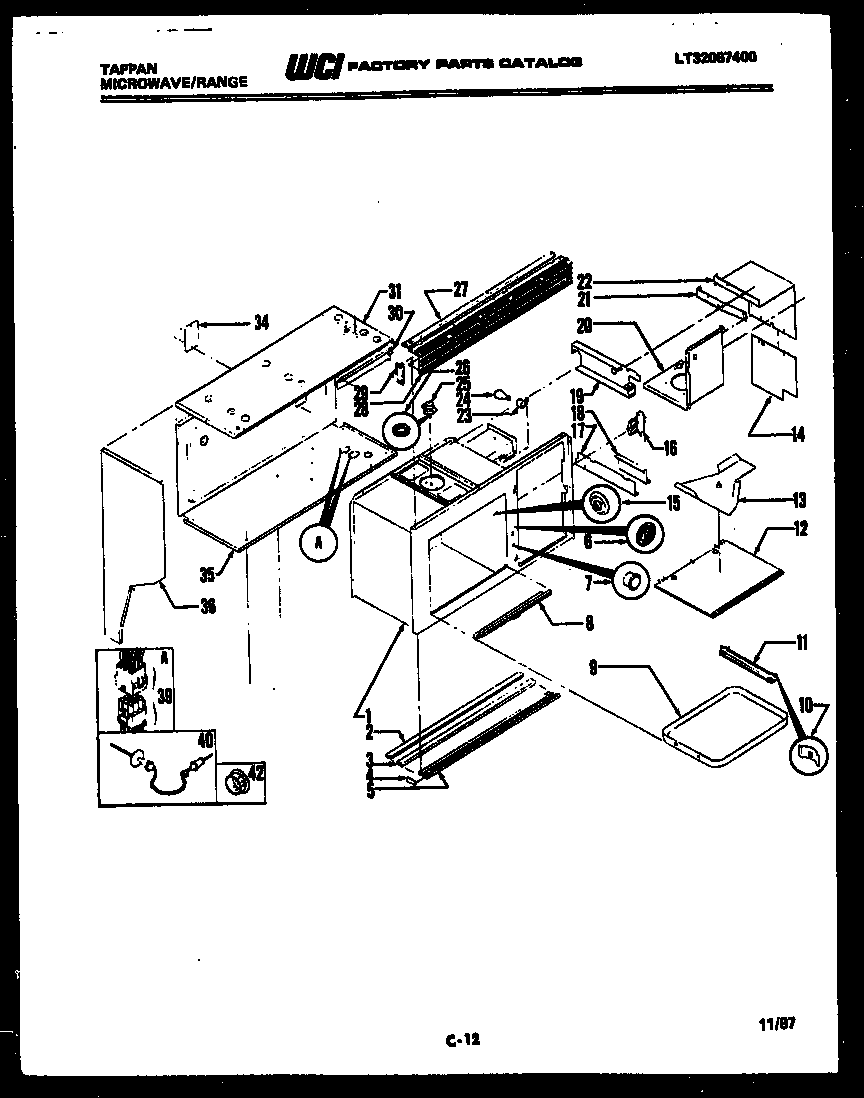

77-8957-00-01 10 – UPPER BODY PARTS

Products

Position	Product
*82406	WCI 241T017P154
*82404	FASTNR WIRE CLIP
*82406	WCI 331T117P01
*82405	PLUG BUTTN. RACK GLIDES (8)
*82402	LABEL COOKING GUIDE (NON-ILLUSTRATED)
*82405	FASTNR PURSELOCK
*82403	FASTNR-8A U-TYPE
*82405	FASTNR. HNG. MTG. (4)
2	SEAL
3	COVER, SEAL
4	WCI 123T082P01
5A	SCREW (8) (NON-ILLUSTRATED)
5	TRIM - BOTTOM
6	MEDALLION DR STRIKE
7	GROMMET DOOR
8	TRIM FRONT
9	TRAY GLASS
10	CLIP TRAY (4)
11	GLIDE, TRAY (2)
12	WCI 174T242P01
13A	NUT STIRRER SHAFT TO FAN
13	WCI 239T043S02
14	COVER DUCT EXT.
15	WCI 479T084P01
16	RECEPTACLE
17	WCI 008T480P01
18	WCI 008T378F11
19	WCI 136T321F02-18
20	WCI 211T044F04
20A	SCREW DUCT (2) (NON-ILLUSTRATED)
21	BRACKET
22	COVER DUCT
23	SOCKET
24	BULB
25	WCI 115T463P01
26	WASHER
27	WCI 612T101F01
28	WCI 740T454P02
29	CAP END RH
29A	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
29	CAP END LH
30	WCI 655T307F02
30	WCI 655T307F03-18
31	WCI 529T079F05-18
34	COVER LIGHT
35	WCI 805T023F06-18
36	WCI 3051260
36	WCI 3051263
36	PNL B/S LEFT (WHEAT)
36	WCI 3131907
36	PNL B/S LEFT (ALMOND)
39	PLUG DISCONN. KIT OVN. ELMNT. WHITE
39	PLUG KIT
40	WCI 115T563P03
42	BUSING
