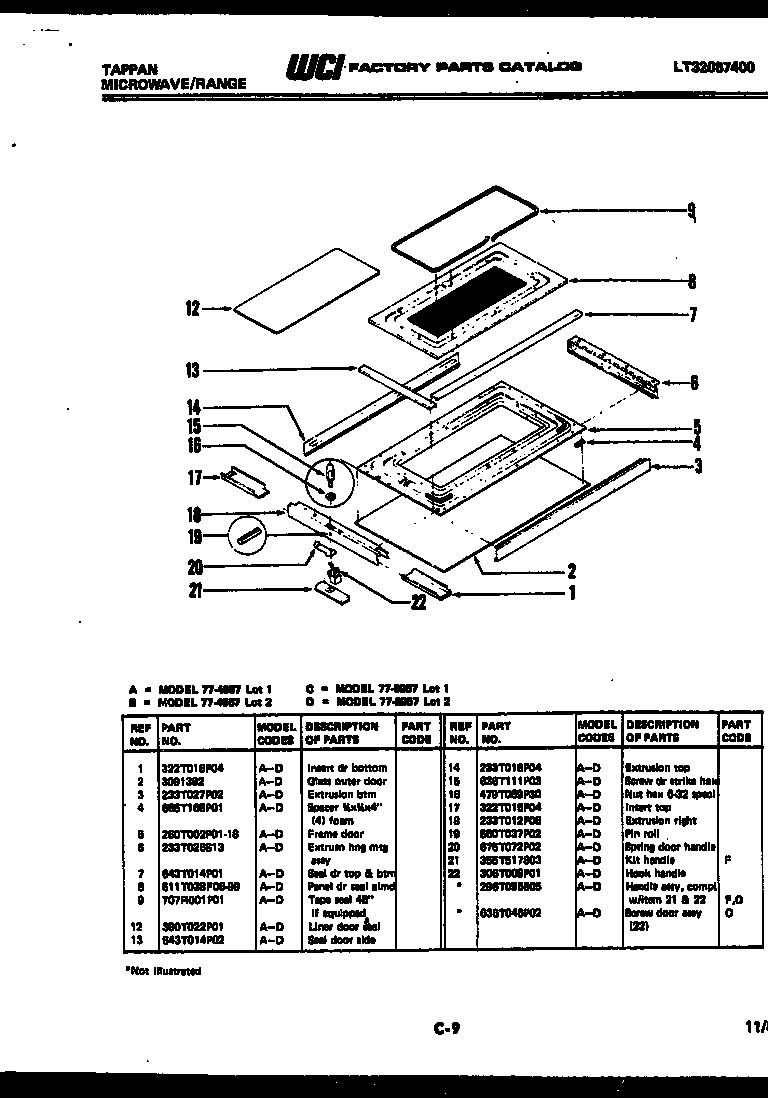

77-8957-00-02 08 – TOP DOOR PARTS
Products
| Position | Product |
|---|---|
| *82349 | HANDLE - COMPLETE |
| *82349 | SCREW SW PNL. (7) |
| 1 | INSERT - DRAWER BTTM |
| 2 | WCI 3091382 |
| 3 | WCI 233T027P02 |
| 4 | SPACER (4) |
| 5 | FRAME |
| 6 | EXTRUSION HINGE |
| 7 | SEAL |
| 9 | WCI 707R001P01 |
| 12 | LINER |
| 13 | SEAL |
| 14 | EXTRUSION |
| 15 | SCREW |
| 16 | NUT (2) |
| 17 | INSERT |
| 18 | EXTRUSION |
| 19 | ROLL PIN |
| 20 | WCI 675T072P02 |
| 21 | HANDLE KIT |
| 22 | WCI 306T008P01 |
