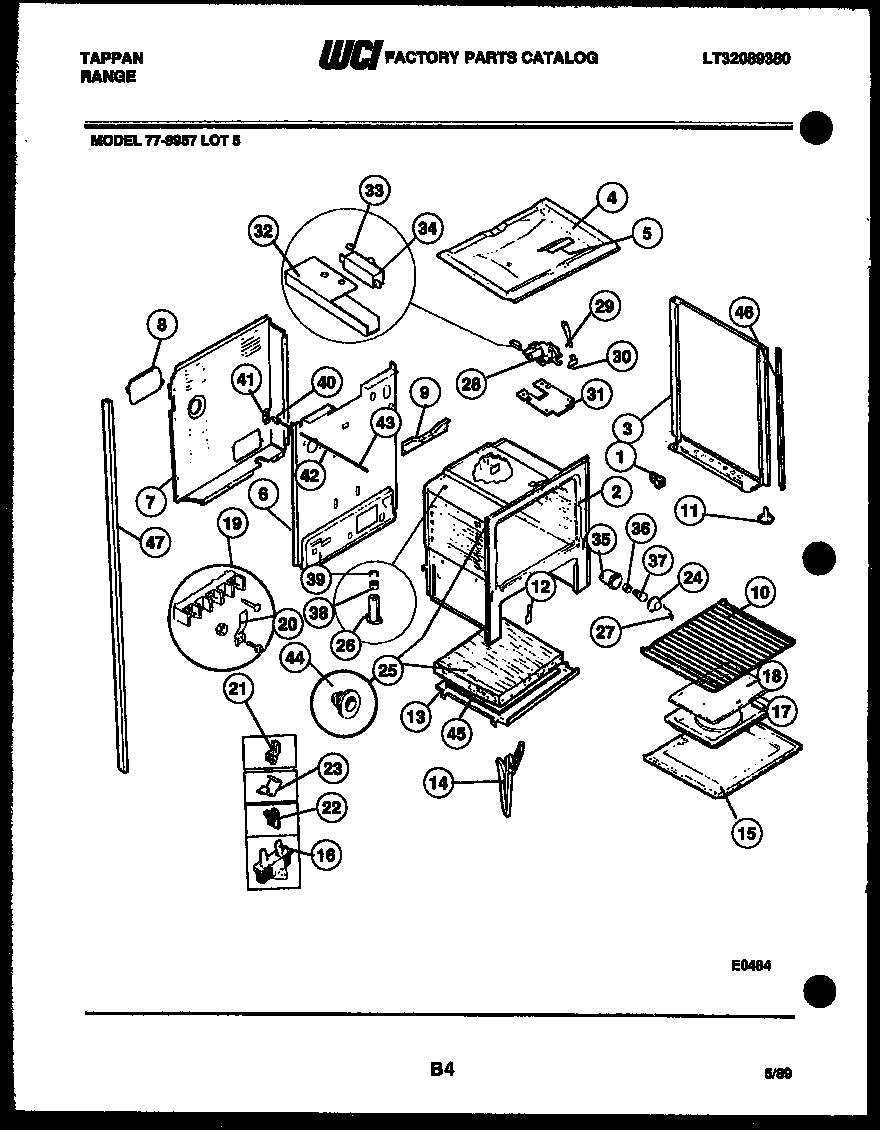

77-8957-08-05 04 – LOWER BODY PARTS

Products

Position	Product
*23929	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
*23929	316403803 Frigidaire Insulation
*23929	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*23929	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23929	INSULATION, OVEN WRAPPER
*23929	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER, BODYSIDE (8)
3	WCI 3201000
3A	WCI 3201001
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	SHIELD, LOWER WALL
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3051298
25	INSULATION, BOTTOM
26	WCI 3051344
27D	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27C	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27A	INSUL OVEN BACK (NON-ILLUSTRATED)
27	WCI 3131104
28	WCI 3051258
29	WCI 3051473
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	WCI 358T158S02
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	SWITCH-LATCH
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 3051737
39	RETAIN, CATALYST
40	WCI 3014246
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BUTTON-REMOVE LIGHT SWITCH
45A	WCI 3131305
45	WCI 3200848
45B	3131903 Frigidaire Door/Drawer Bumper
46	TRIM-VERT B/S (2)
47	WCI 3051723
47A	WCI 3051724
