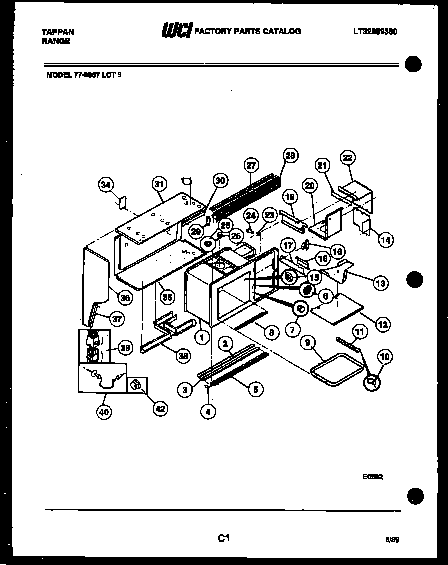

77-8957-08-05 10 – UPPER BODY PARTS

Products

Position	Product
*23951	WCI 241T017P154
*23950	FASTNR WIRE CLIP
*23951	WCI 331T117P01
*23949	LABEL COOKING GUIDE (NON-ILLUSTRATED)
*23949	FASTNR-8A U-TYPE
*23950	FASTNR. HNG. MTG. (4)
*23951	FASTNR PURSELOCK
*23951	WCI 636P090P34
*23950	PLUG BUTTN. RACK GLIDES (8)
2	WCI 636T013P03
3	COVER – SEAL
4	WCI 123T082P01
5A	SCREW (8) (NON-ILLUSTRATED)
5	TRIM – BOTTOM
6	MEDALLION DR STRIKE
7	GROMMET DOOR
8	TRIM, FRONT
9	TRAY GLASS
10	CLIP TRAY (4)
11	GLIDE TRAY (2)
12	COVER, STIRRER
13A	NUT STIRRER SHAFT TO FAN
13	WCI 239T043S02
14	COVER DUCT EXT.
15	WCI 479T084P01
16	RECEPTACLE
17	WCI 008T480P01
18	WCI 008T378P11
19	WCI 136T321F02-86
20	WCI 221T044F04
20A	SCREW DUCT (2) (NON-ILLUSTRATED)
21	BRACKET
22	COVER DUCT
23	SOCKET
24	BULB
25	WCI 115T463P01
26	WASHER
27	WCI 612T101F01
28	WCI 740T454P02
29	CAP END LH
29A	CAP END RH
30	WCI 665T307F03-18
30	WCI 665T307F02
31	WCI 529T079F05-18
34	COVER LIGHT
35	WCI 805T023F06-18
36	WCI 3131907
37	WCI 740T309F01
37A	WCI 740T309F02
38	WCI 211T073S01
39A	PLUG KIT
40	WCI 115T563P03
42	BUSING
