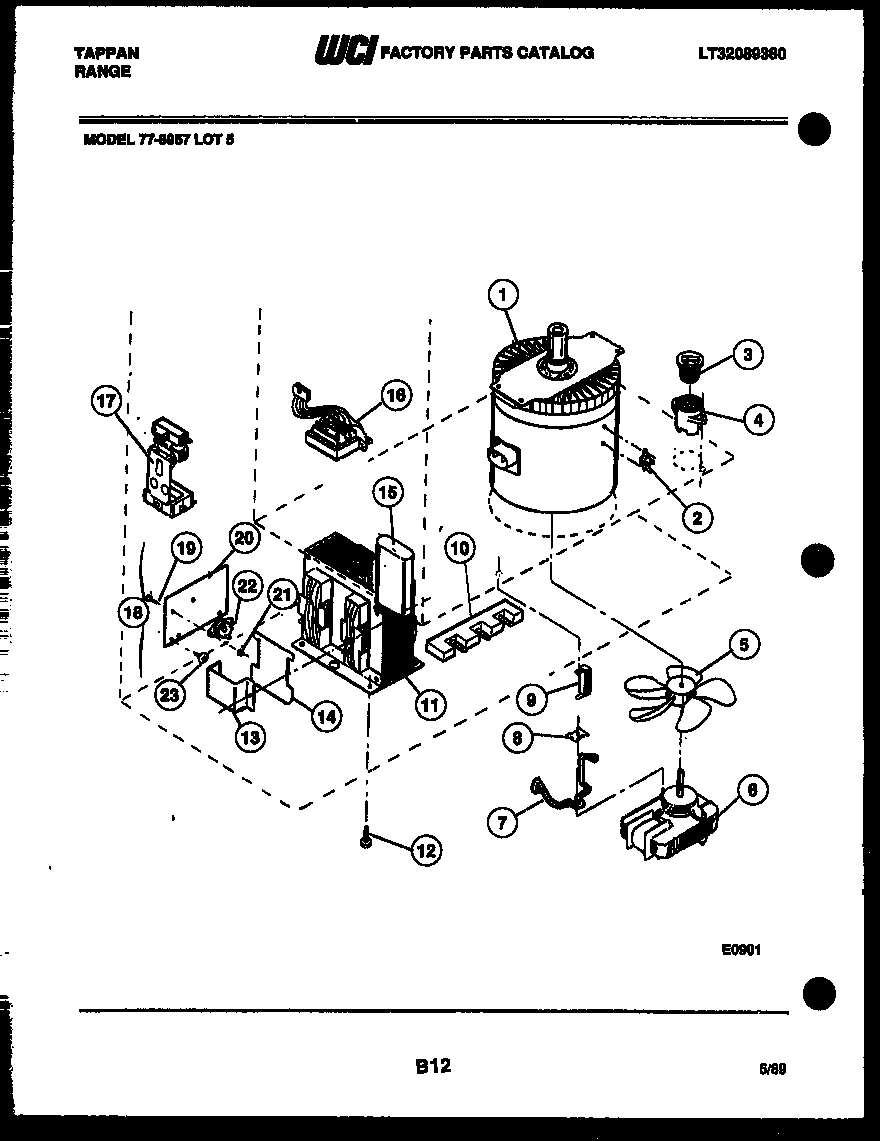

77-8957-23-05 09 – POWER CONTROL

Products

Position	Product
*23942	WCI 299T405S203
*23942	HARNESS MAIN
*23943	WCI 3091206
*23943	SCREW TERM (2) (NON-ILLUSTRATED)
1	WCI 423T016P02
1A	NUT (NON-ILLUSTRATED)
2A	WCI 636T074P10
2	SWITCH
3	FUSE
4	SOCKET
5	FAN BLADE TRANSFORMER
6	MOTOR FAN
7	ROD MOTOR (2)
8	CHANNEL
9	DIODE HV
10	5304409888 Frigidaire Oven Terminal Block with Hardware
10A	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
11	TRANSFORMER HV
12	SCRW. TRANSFORMR. MTG. 1/4-20 X 1/2`` (4)
12	SCREW, TRANS (4)
13	RETAINER
14	SHIELD CAPACITOR
15	CAPAC HI VOLT. NON PCP
16	TRANSFORMER LV
17A	WCI 636T095P16
17	SWITCH KIT (+)
18	TRIAC, HEAT SINK
19	WCI 636T095P47
19	SCREW (2)
20	WCI 554T338F02
21	NUT (2)
22	WCI 742T005P01
23	SCREW (8) (NON-ILLUSTRATED)
