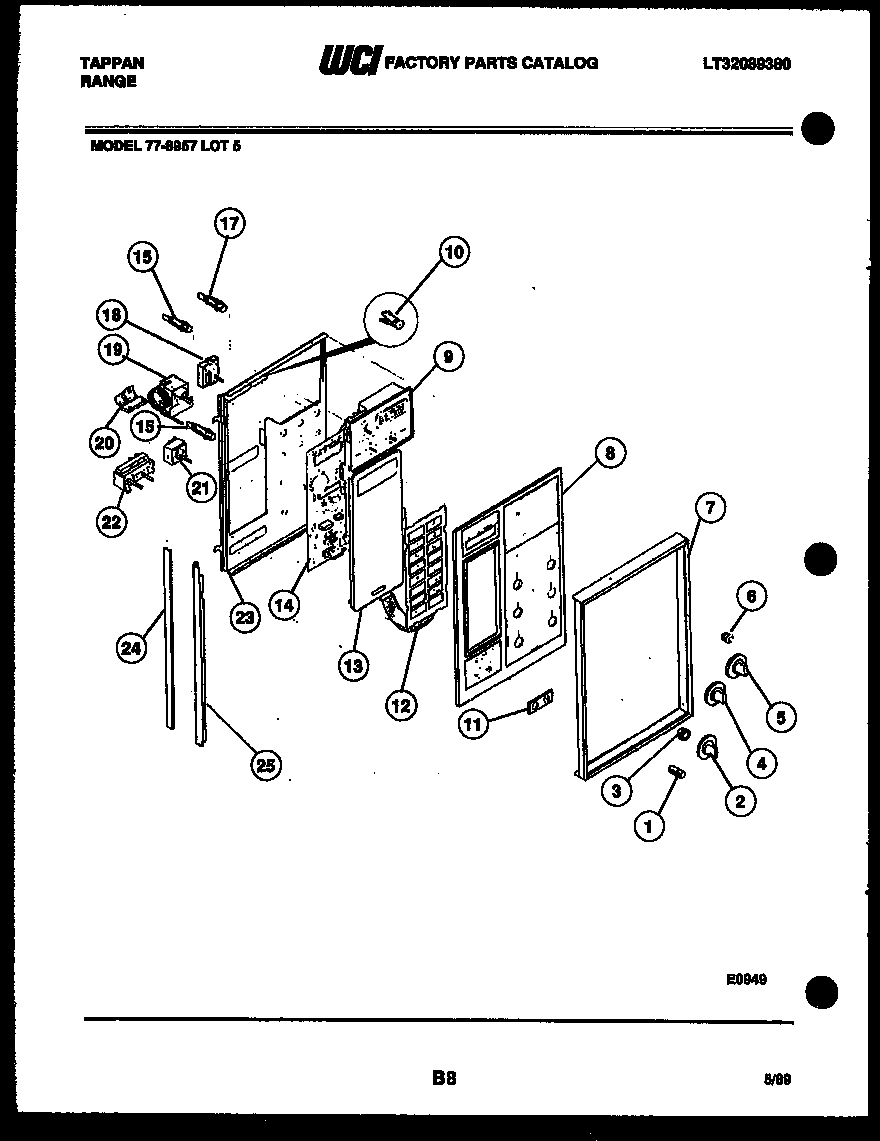

77-8957-45-05 07 – CONTROL PANEL

Products

Position	Product
*23935	SPACER - CONTROL PNL (2)
*23936	5303288565 Frigidaire Screw
1	BUTTN PUSH ON-OFF (2)
2	WCI 3091393
3	BUSHING C/P
4	KNOB-THERMOSTAT UPPER
5	KNOB-SELECTOR SWITCH 6 POS.
6	WCI 358T201P01
7	TRIM CONTROL PNL
8	GLASS CONTRL PNL ASSY.
9	WCI 3091385
10	FASTENER, CLOCK
11	BEZEL
12	SWITCH TOUCH MEMBRANE
13	PANEL SWITCH
14A	SCREW BOARD (4)
14	CIRCUIT BRD. PRINT.
15	INDICATOR-LITE OVN
17	INDICATOR LIGHT (4)
18	WCI 3051315
19	THERMO-OVEN LOWER
20	PLUG DISCON 9 PIN
21	SWITCH S/U (4)
22	SWITCH ON-OFF
22A	SCREW SELECT. SW. (NON-ILLUSTRATED)
23	WCI 3091343
23A	SCREW SW PNL. (7)
24	SEAL
25	COVER, SEAL
