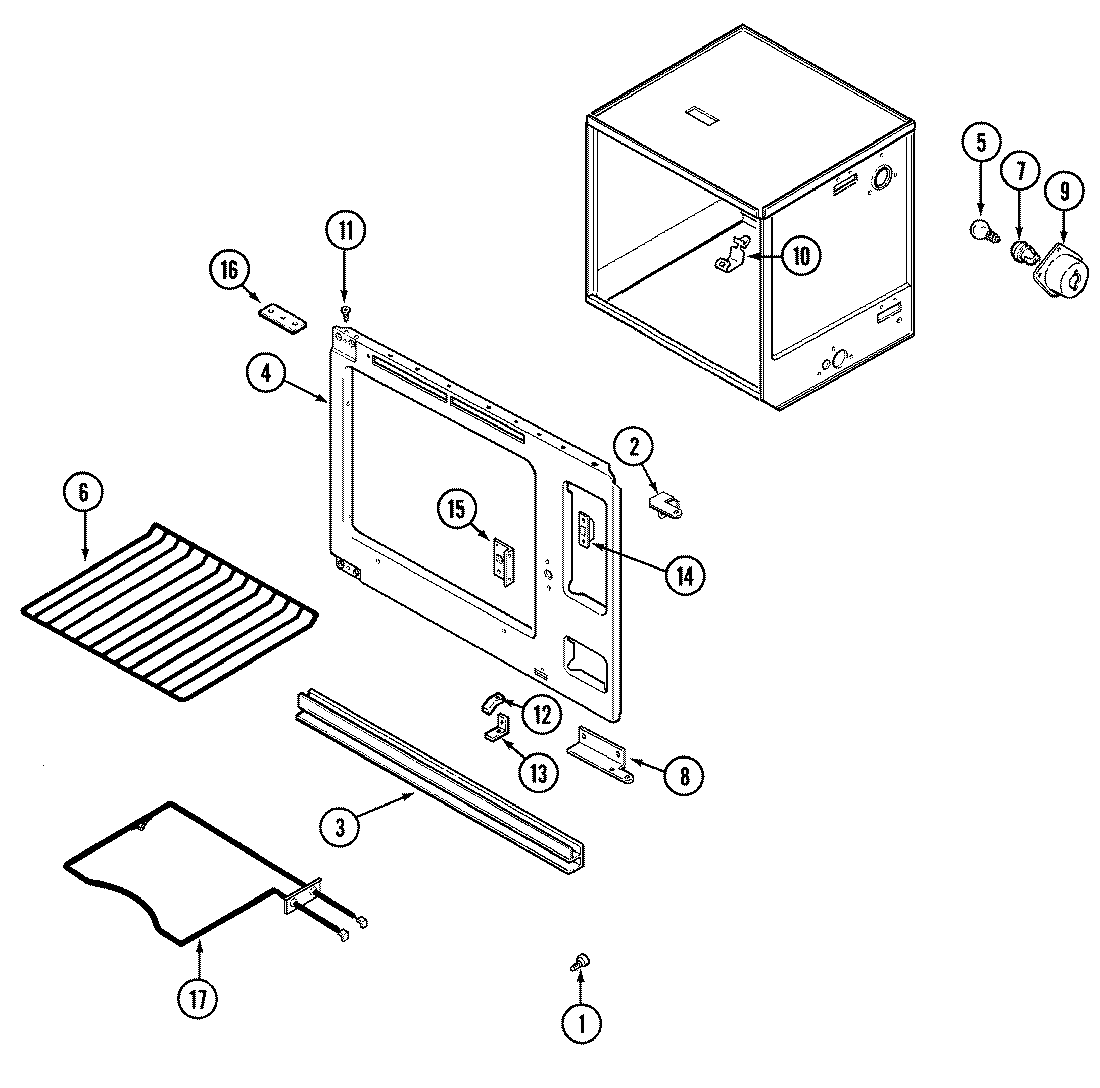

7858XUW 08 – OVEN (UPPER) – Aparts

7858XUW 08 – OVEN (UPPER)

Products

Position	Product
1	SPACER, HINGE (MAIN TOP)
1	SCREW
2	MAY 3807F039-34
3	MAY 7706P035-60
4	MAY 2201F064-19
5	RANGE ONLY 40W 120V APPL BULB
6	MAY 7801P008-60
7	MAY 7408P034-60
8	MAY 3807F133-34
9	MAY 4001F016-19
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 7101P058-60
12	MAY 7101P019-60
12	MAY 8016P001-60
13	MAY 8004P002-60
13	WP7101P072-60 Whirlpool Screw
14	MAY 8002P006-60
15	MAY 3605F001-32
16	MAY 8010P014-60
17	MAY 7101P105-60
17	MAY 7406P089-60
