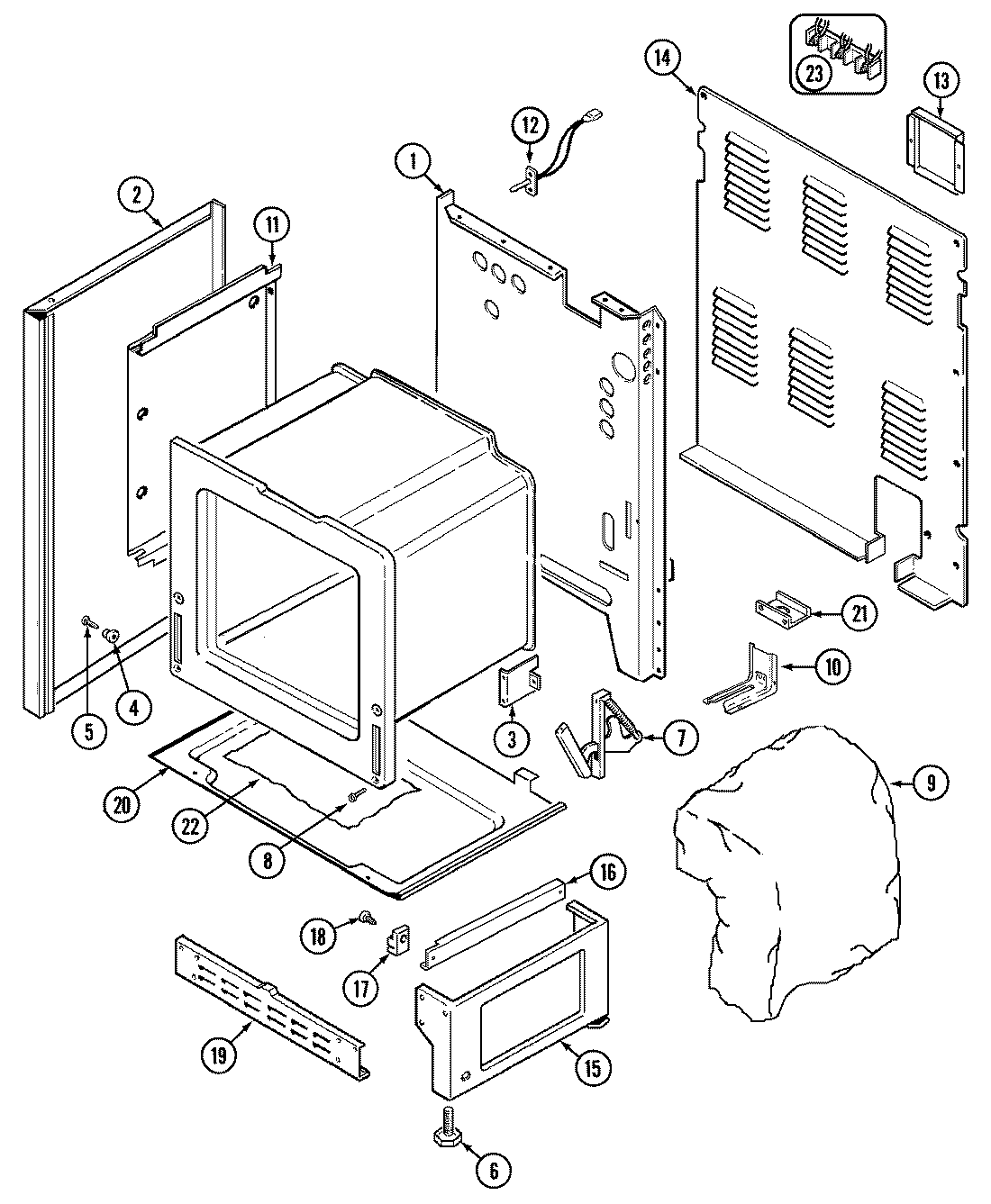

7858XVA 02 – BODY-LOWER

Products

Position	Product
1	MAY 74001873
2	MAY 2618F112-74
2	SPACER, MAIN TOP (LT)
2	SPACER, MAIN TOP (RT)
2	MAY 2618F111-74
3	SUPPORT,OVEN REAR
4	MAY 8004P024-60
5	MAY 74001449
6	MAY 7101P306-60
6	W11665456 Whirlpool Range Level Foot
7	WP74011140 Whirlpool Oven Hinge
7	MAY 7106P056-60
8	SCREW (10-24X5/16-NI)
9	MAY 4804F030-60
9	MAY 4804F036-60
10	MAY 3801F218-51
11	MAY 74002599
12	MAY 7430P010-60
13	MAY 4005F427-51
14	MAY 4005F422-51
15	MAY 74003003
15	MAY 4020W011-80
16	RUNNER, DRAWER
16	MAY 3406F028-51
17	WP488130 Whirlpool Air Conditioner Nut
17	MAY 74003566
17	MAY 74002312
18	MAY 74001280
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 4020F001-80
20	MAY 3804F112-51
21	MAY 3605F174-51
22	MAY 8312P058-60
23	WPW10245259 Whirlpool Terminal Block
