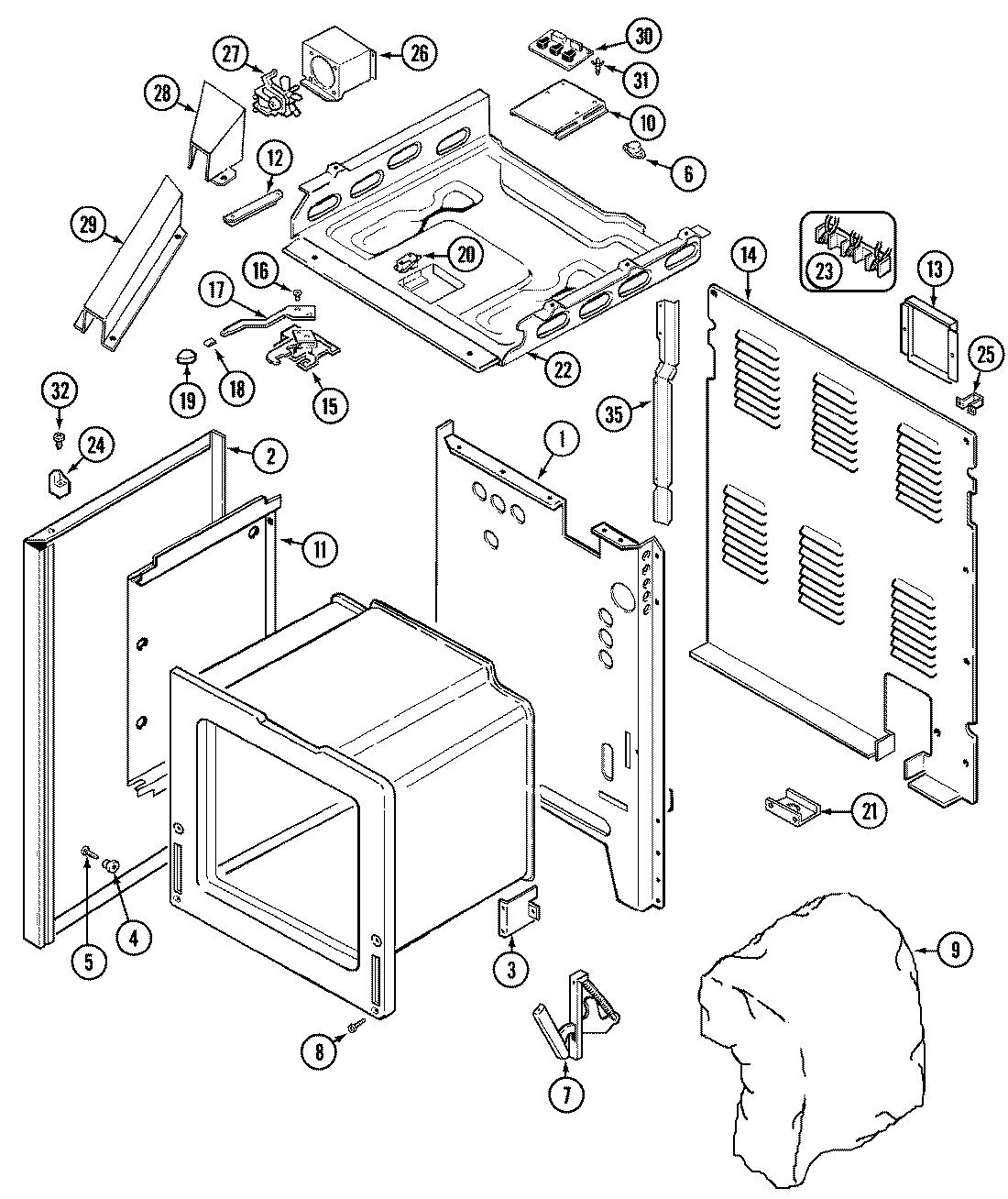

7898VAD 01 – BODY

Products

Position	Product
1	MAY 7101P337-60
1	MAY 74001873
2	MAY 2618F111-74
2	MAY 2618F112-74
3	SUPPORT,OVEN REAR
4	MAY 8004P024-60
5	MAY 74001449
6	MAY 7403P307-60
7	WP74011140 Whirlpool Oven Hinge
7	MAY 7106P056-60
8	SCREW (10-24X5/16-NI)
9	MAY 4804F036-60
9	MAY 4804F030-60
10	MAY 4005F466-51
11	MAY 3804F103-51
12	MAY 3801F327-51
13	MAY 4005F427-51
14	MAY 4005F422-51
15	W10828565 Whirlpool Screw
15	MAY 8002P025-60
15	MAY 74003032
15	MAY 7101P280-60
16	SCREW, LEVER
17	MAY 8009P029-60
17	MAY 74001057
18	MAY 7112P112-60
19	MAY 7701P151-60
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7101P130-60
20	MAY 74001708
21	MAY 3605F174-51
22	MAY 74001821
23	WPW10245259 Whirlpool Terminal Block
24	SPACER, MAIN TOP (LT)
24	SPACER, MAIN TOP (RT)
25	MAY 7101P147-60
25	MAY 7112P097-60
26	MAY 4001F098-51
27	MAY 7427P012-60
28	MAY 3818F056-51
29	MAY 3818F053-51
29	MAY 3818F054-51
30	MAY 7428P021-60
31	MAY 8004P032-60
31	MAY 8004P020-60
31	SUPPORT, RELAY
32	MAY 7118P013-60
33	MAY 7407P098-60
34	MAY 3801F312-45
35	MAY 3818F059-51
35	SCREW
