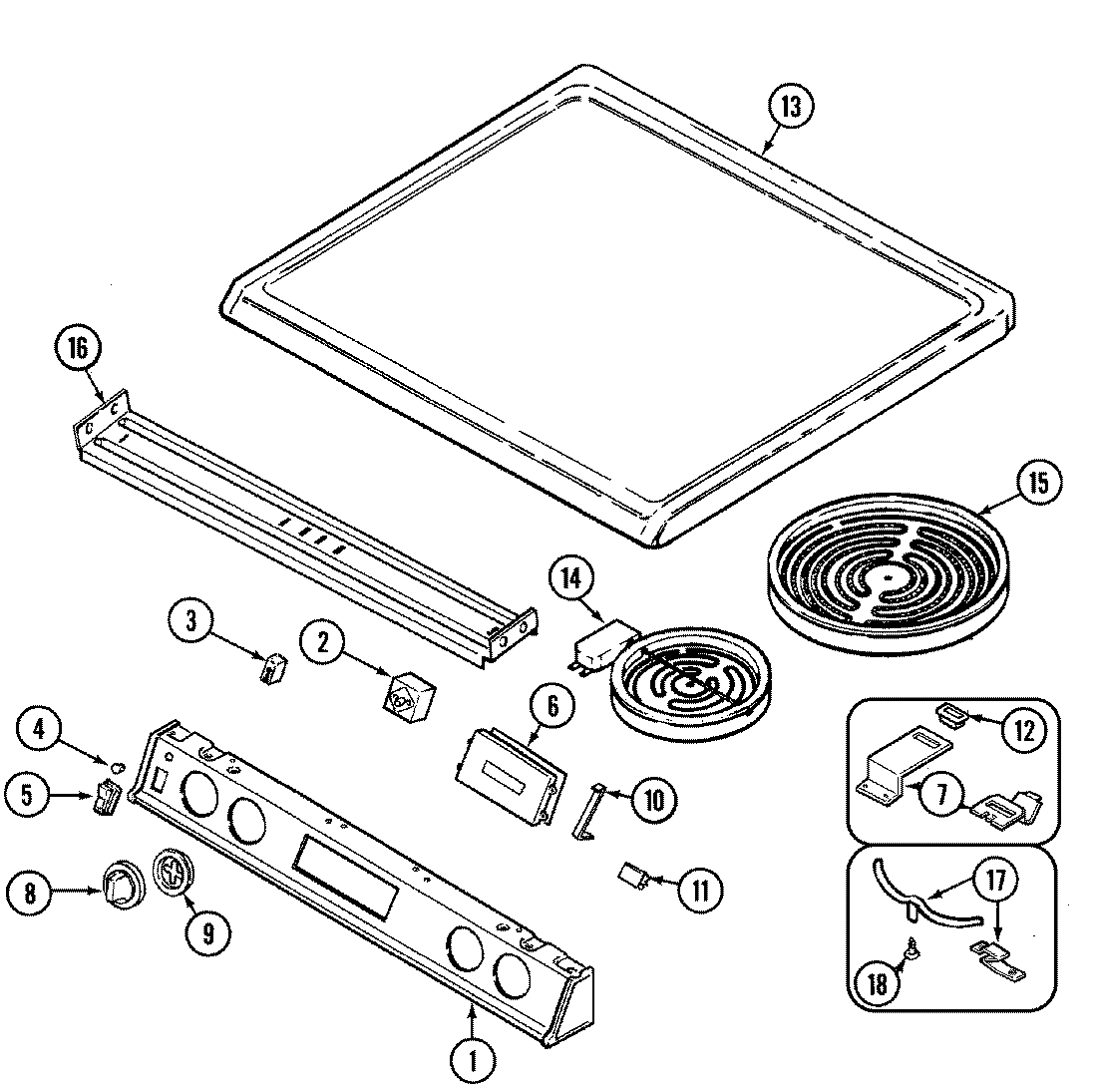

7898VAD 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003012
1	MAY 74002285
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P358-60
6	MAY 74002274
6	MAY 7101P346-60
7	MAY 74002978
7	MAY 3801F312-45
8	MAY 7737P046-60
9	MAY 7740P072-60
10	MAY 3801F349-51
10	SCREW (8BX3/8-NI)
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	MAY 5706M104-84
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY 12500041
15	MAY 12500040
15	W10823707 Whirlpool Range Radiant Surface Element 8"
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	WP59002061 Whirlpool Microwave Screw
16	MAY 3807F390-45
17	MAY 74002976
17	MAY 8004P015-60
18	SCREW
20	MAY 5170P228-60
20	MAY 74001583
20	MAY 74001656
20	MAY 5175D075-60
20	MAY 5175D076-60
21	MAY 8308P002-60
22	MAY 16007454
23	MAY 16000329
