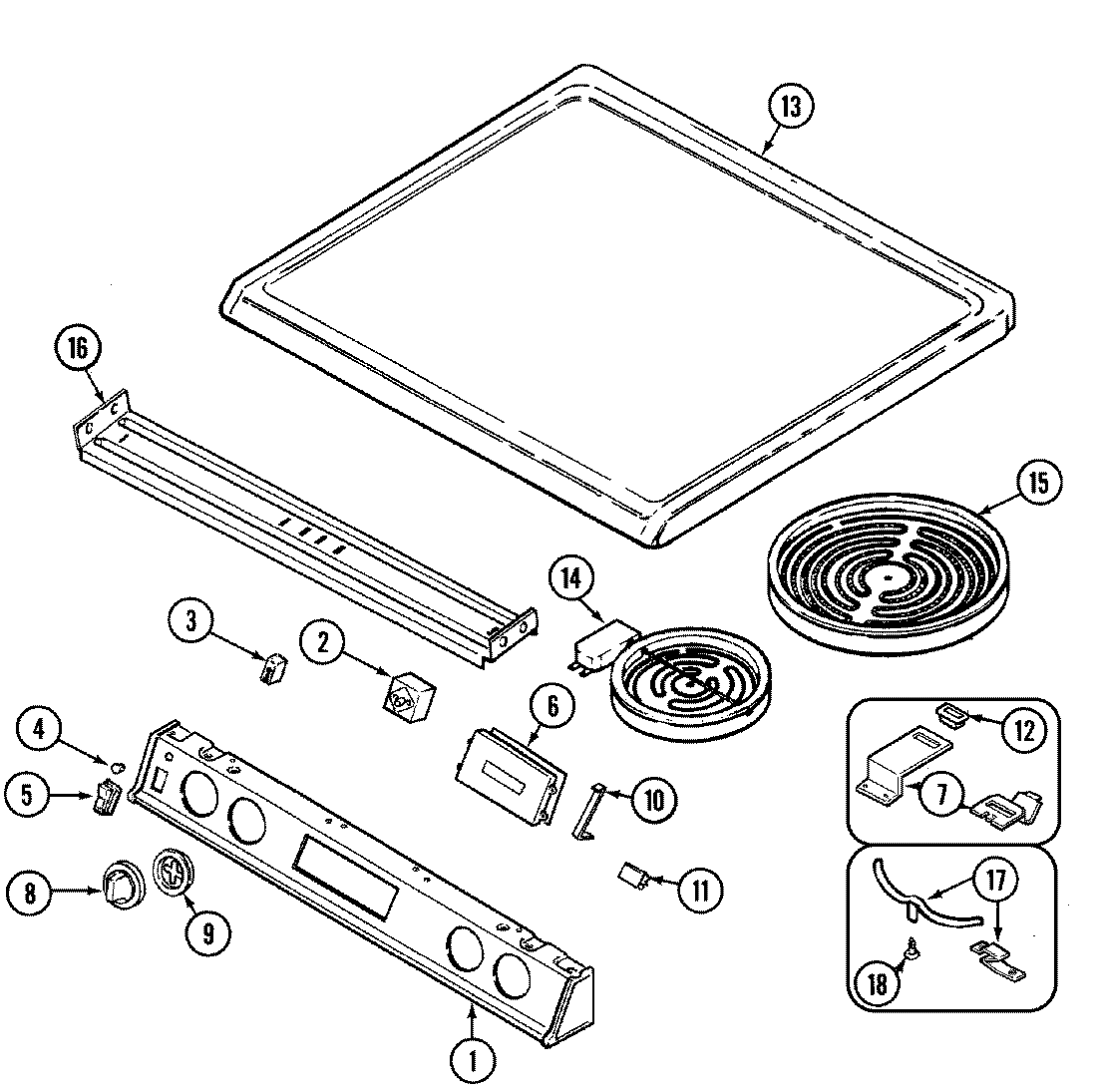

7898VAV 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003011
1	MAY 74001538
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 74002272
6	MAY 7101P346-60
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7731P081-60
9	MAY 7740P023-60
10	MAY 3801F349-51
10	SCREW (8BX3/8-NI)
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	MAY 5706M105-81
14	MAY 12500041
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 12500040
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 3807F390-45
16	WP59002061 Whirlpool Microwave Screw
17	MAY 8004P015-60
17	MAY 74002976
18	SCREW
20	MAY 5175D075-60
20	MAY 5170P228-60
20	MAY 74001583
20	MAY 5175D076-60
20	MAY 74001656
21	MAY 8308P002-60
22	MAY 16007454
23	MAY 16000329
