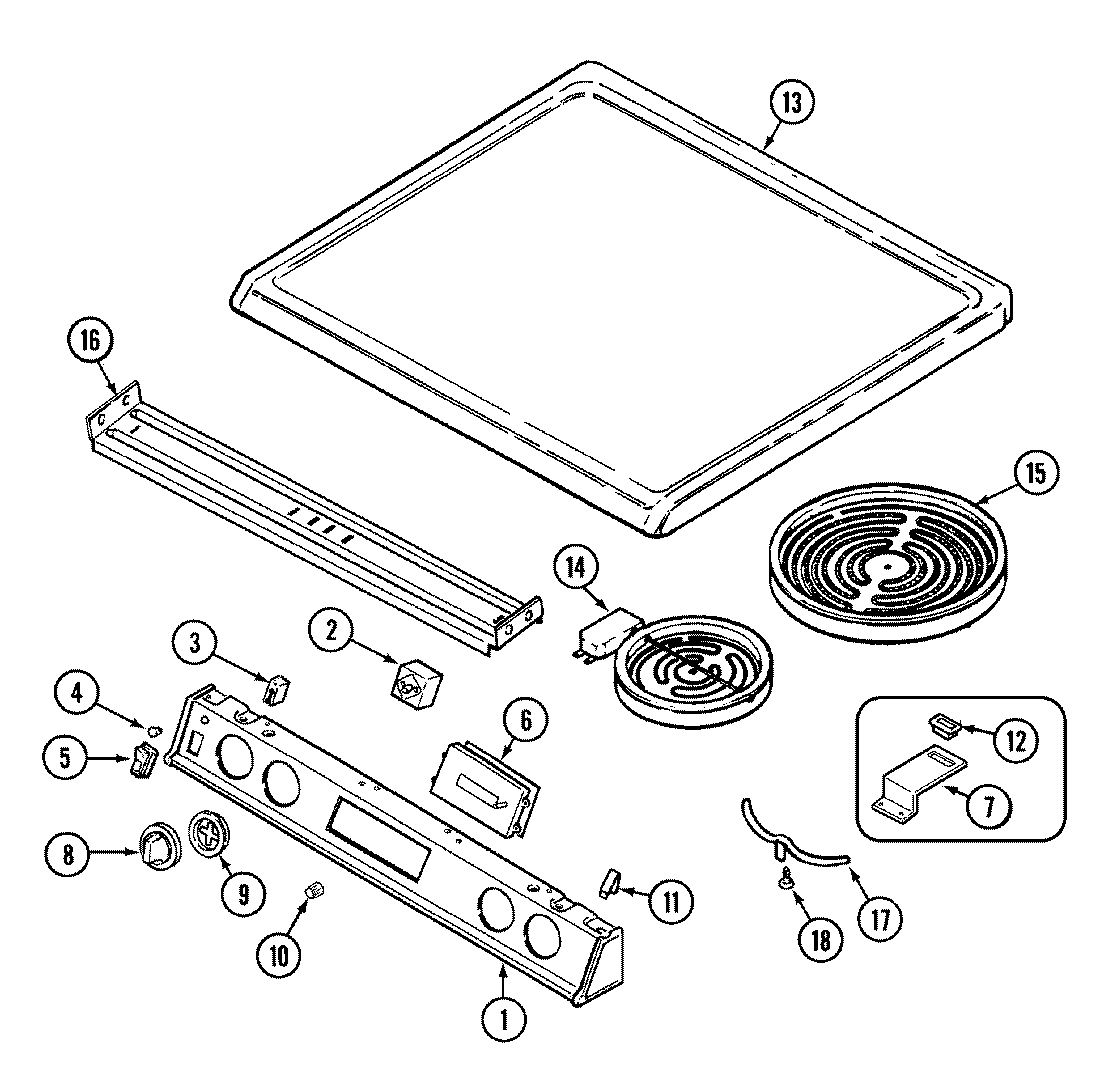

7898VVV 06 – TOP ASSEMBLY
Written by
in
7898VVV 06 – TOP ASSEMBLY
Products
Position
Product
1
MAY 74001538
2
SCREW
2
WP7403P239-60 Whirlpool Oven Switch
2
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3
W10852510 Whirlpool Indicator Light
4
W11690131 Whirlpool Light Lens
5
MAY 7403P200-60
6
MAY 7601P279-60
6
MAY 3801F349-51
7
MAY 3801F312-45
8
MAY 7731P081-60
9
MAY 7740P023-60
10
MAY 7711P432-60
11
MAY 7112P087-60
11
MAY 7112P102-60
12
MAY 7407P098-60
13
MAY 5706M105-81
14
MAY 7406P074-60
14
MAY 12500041
14
W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15
W10823707 Whirlpool Range Radiant Surface Element 8"
15
MAY 12500040
15
MAY 7406P073-60
16
MAY 3807F390-45
17
MAY 8004P015-60
18
WP59002061 Whirlpool Microwave Screw
19
MAY 5175D076-60
19
MAY 74001583
19
MAY 5170P228-60
19
MAY 74001656
20
MAY 8112P105-60
20
MAY 74001539
21
MAY 16000329
←
