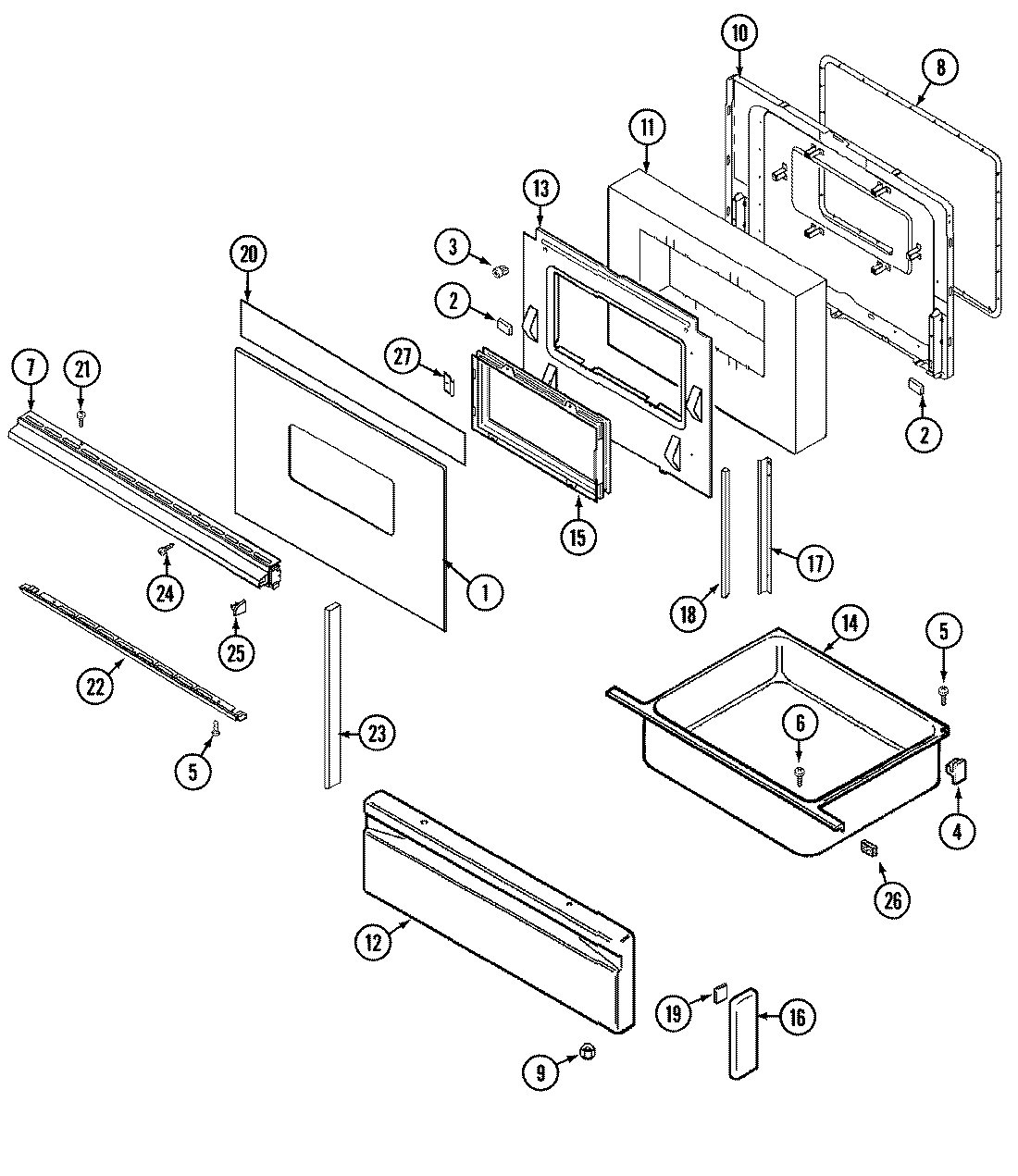

7898XRA 03 – DOOR/DRAWER

7898XRA 03 – DOOR/DRAWER

Written by

in

7898XRA 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P321-60
2MAY 8010P085-60
3MAY 7103P045-60
4WP8004P026-60 Whirlpool Support
7MAY 7701P103-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 74001058
11MAY 74001842
12MAY 2416F038-64
13MAY 3601F236-45
14MAY 3405F014-80
15MAY 7907P021-60
17MAY 3818F052-80
18MAY 7208P002-60
20TAPE, FOIL (3“ WIDE)
21WP98008545 Whirlpool Screw
22MAY 7744P105-60
23MAY 7744P055-60
24SCREW
25MAY 7744P075-60
25MAY 8270P093-60
25MAY 7744P076-60
26MAY 7208P011-60
27MAY 3805F002-34
