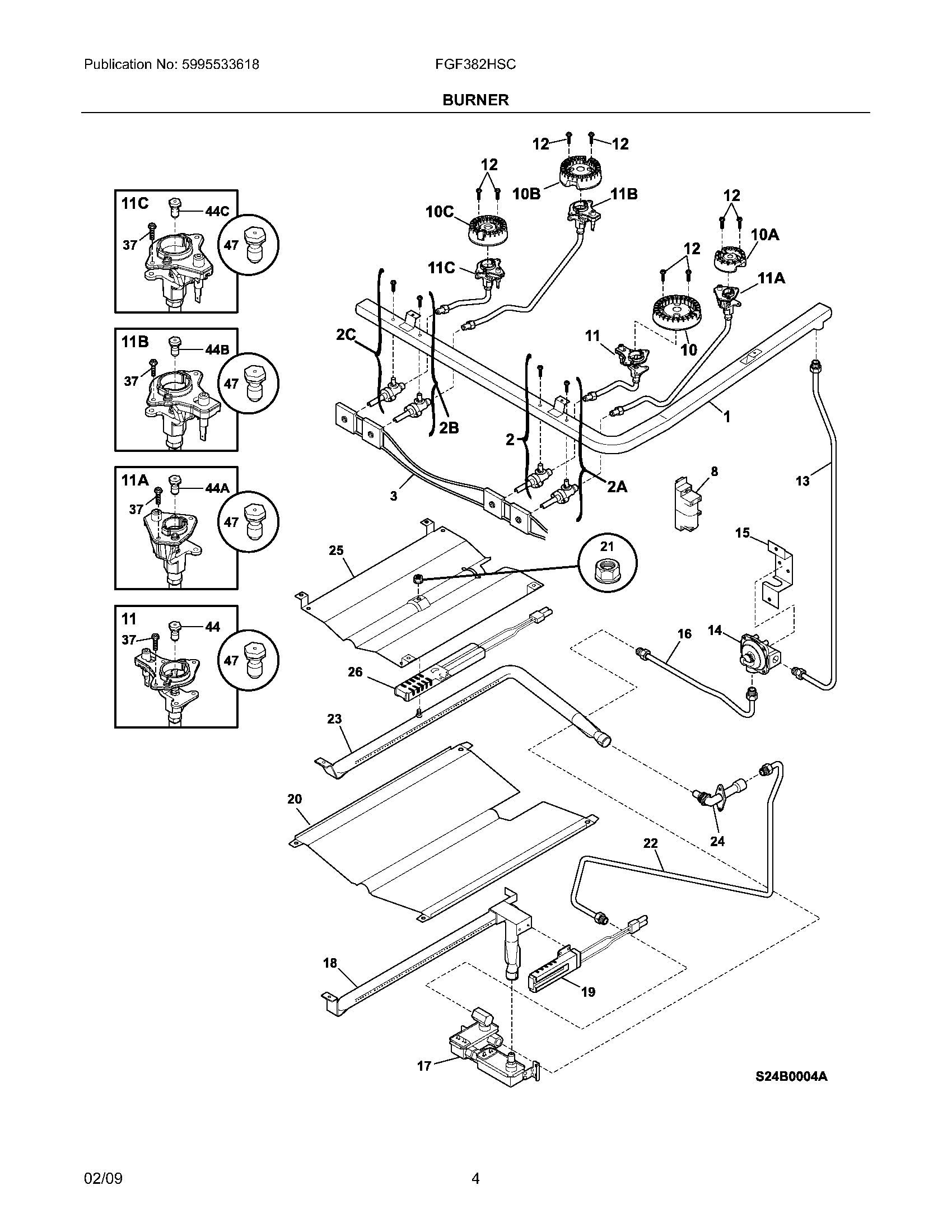

79097432801 05 – BURNER

79097432801 05 – BURNER

Written by

in

79097432801 05 – BURNER

Products

PositionProduct
F1Manifold,pipe
F165304507348 Frigidaire Oven Tube
F17316404901 Frigidaire Oven Valve
F18316404400 Frigidaire Oven Burner
F225304507768 Frigidaire Oven Tube
F245304516894 Frigidaire Oven Elbow
F85304505695 Frigidaire Oven Module
F2B5303935306 Frigidaire Oven Valve
F195304534663 Frigidaire Igniter
F26316489401 Frigidaire Igniter Assembly
F3Wiring Harness,w/igntr switch
F11B316536612 Frigidaire Igniter Assembly/Orifice
FNIWIRING HARNESS,IGNITOR MODU
F23WCI 316404300
F2A5303935308 Frigidaire Oven Valve
F2WCI 5303935233
NI316498100 Frigidaire Shield
F2C5303935305 Frigidaire Oven Valve
NI316417518 Frigidaire Instructions
NI316401500 Frigidaire Oven Cover
F10316438400 Frigidaire Range Sealed Burner, 16/17K
F10A316438200 Frigidaire Range Sealed Burner, 5K
NI316215600 Frigidaire Oven Screw
F10C316558300 Frigidaire Oven 9.5L Sealed Burner
F13WCI 316545700
NI316021104 Frigidaire Oven Screw Assembly
F145304521339 Frigidaire Regulator
F11A316536610 Frigidaire Igniter Assembly/Orifice
10B316438000 Frigidaire Sealed Burner 12K Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11316536621 Frigidaire Igniter and Orifice Assembly
12WCI 316529700
15316091600 Frigidaire Oven Bracket
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
25WCI 316401301
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44316527508 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44B316527502 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
