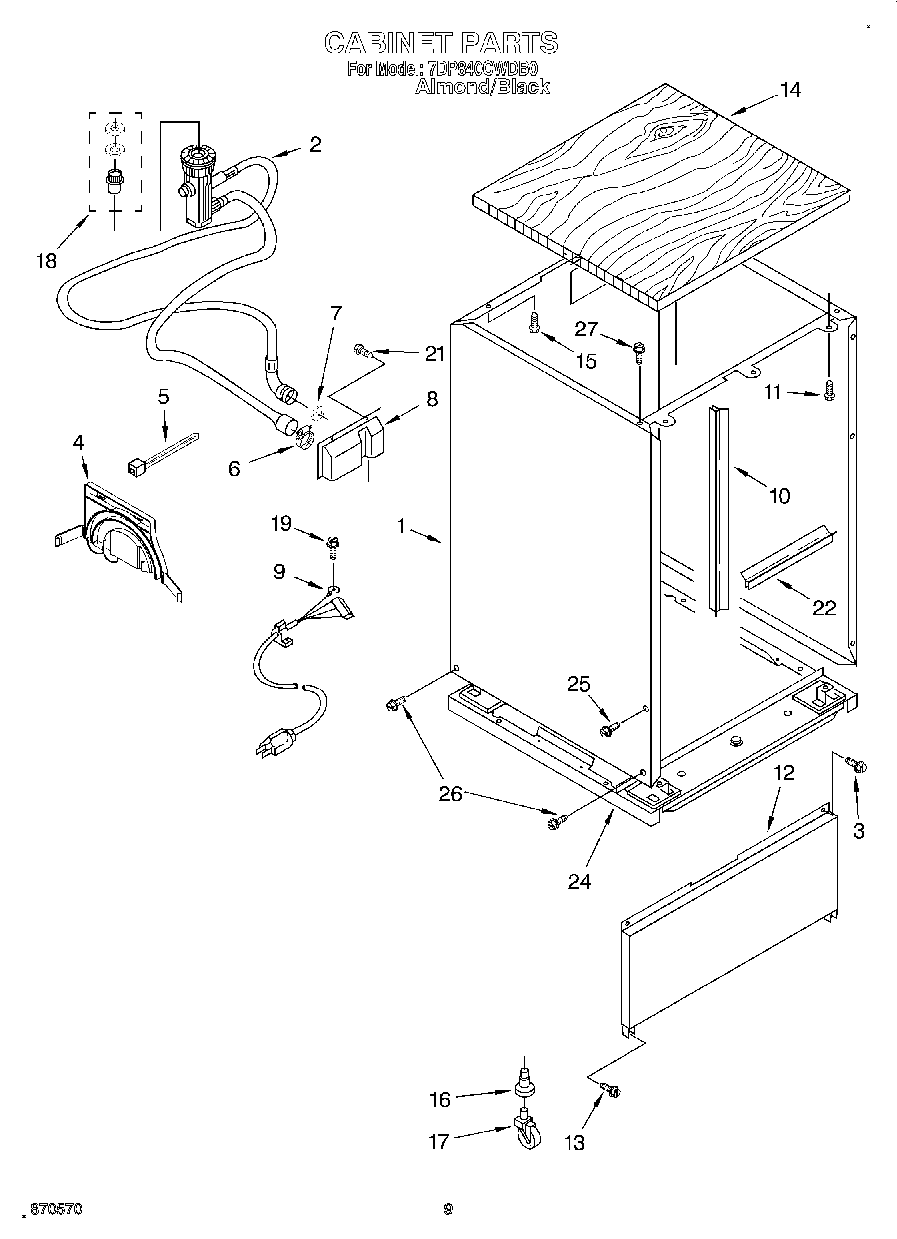

7DP840CWDB0 08 – CABINET

7DP840CWDB0 08 – CABINET

Written by

in

7DP840CWDB0 08 – CABINET

Products

PositionProduct
1Shell Assembly (Almond)
2WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3WP302868 Whirlpool Screw
43378109 Whirlpool Dishwasher Cushion
5WPW10339879 Whirlpool Wire Tie
6WP3367052 Whirlpool Hose Clamp
7WP16123 Whirlpool Washer
8Housing, Hose
9Cord, Power
10Protector-Edge, Divider
11WP3373329 Whirlpool Dishwasher Screw
12Shroud, Caster
13Screw
14Panel, Top
15SCREW
16Socket, Caster (Alternate)
17WP3370639 Whirlpool Caster
18WPW10254672 Whirlpool Faucet Adapter
21SCREW
22Protector-Edge, Divider
24Frame Assembly
25Screw, 8-18 x 1/2
26Screw
27302251 Whirlpool Dishwasher Screw
