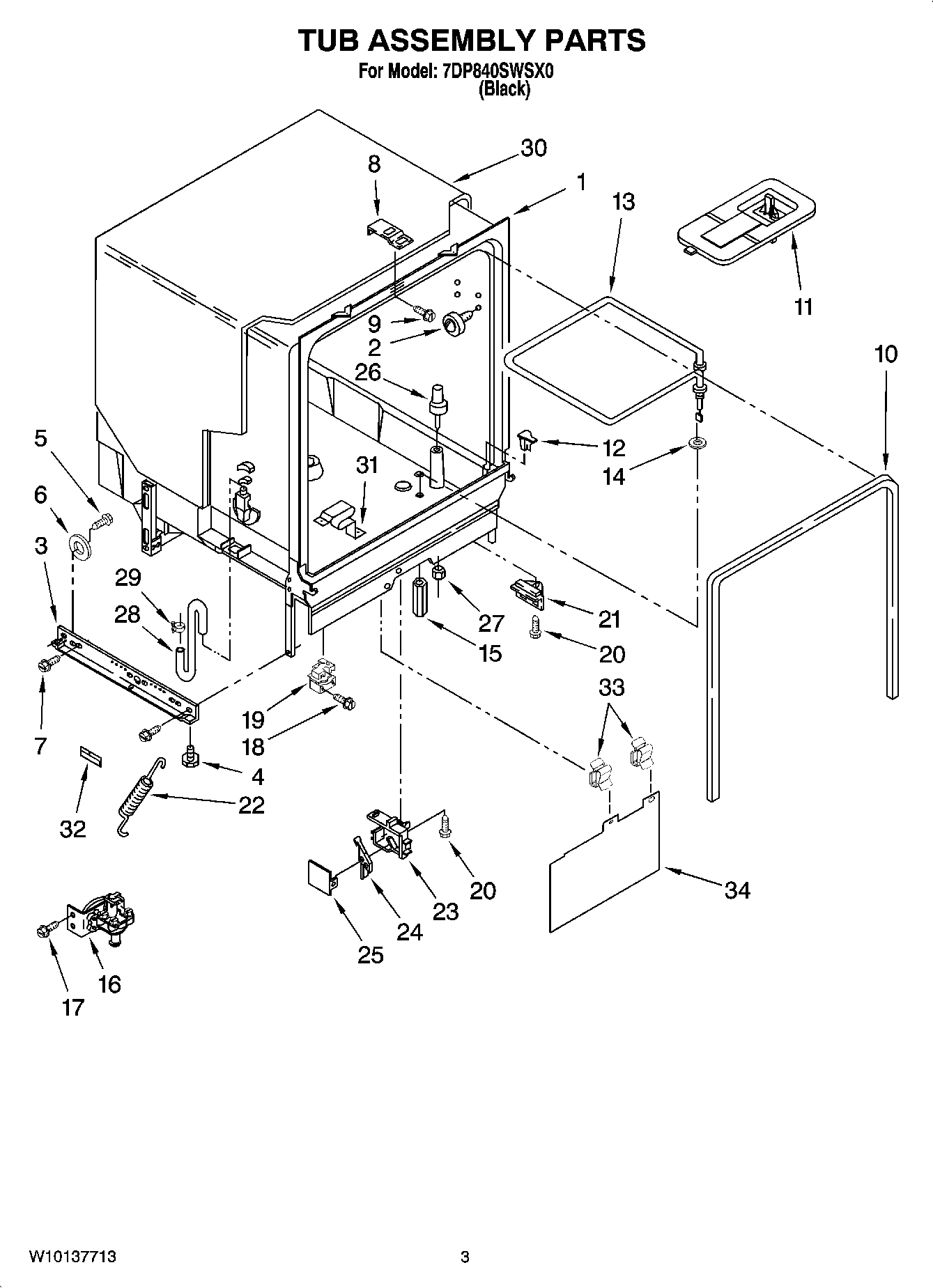

7DP840SWSX0 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	WP8528831 Whirlpool Dishwasher Mounting
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	WP8274220 Whirlpool Dishwasher Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP489128 Whirlpool Refrigerator Screw
19	W10102260 Whirlpool Dishwasher Motor Relay
20	WP304231 Whirlpool Dishwasher Screw
21	WP3368928 Whirlpool Dishwasher Fuse
22	WP3373228 Whirlpool Dishwasher Spring
23	Housing, Float Switch
24	Switch, Float
25	8318219 Whirlpool Dishwasher Cover Housing
26	WP8519552 Whirlpool Dishwasher Float
27	Nut
28	Hose, Inlet
29	WP596669 Whirlpool Hose Clamp
30	W11086533 Whirlpool Dishwasher Shield
31	3379740 Whirlpool Dishwasher Heater Support
32	Friction Pad (Velcro)
33	WP3400935 Whirlpool Dishwasher Clip
34	WP8531865 Whirlpool Dishwasher Door Shield
