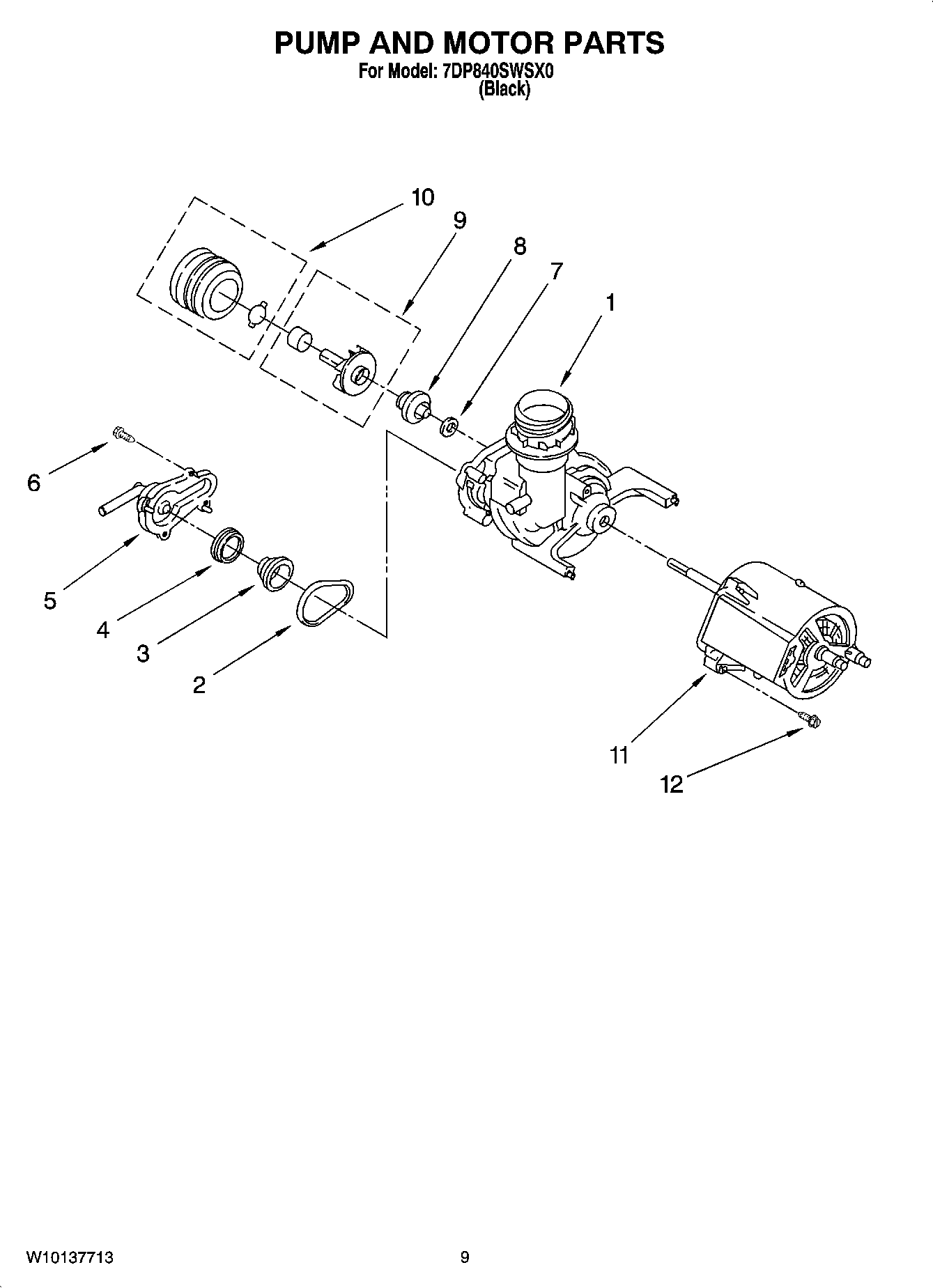

7DP840SWSX0 07 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	72017 Whirlpool Appliance Touch-Up Paint White
	DISHRACK REPAIR
	DOOR SPRING KIT: (HEAVY DUTY)
	Side Panel Kit: (Almond)
	Side Panel Kit (White)
	W10840471 Whirlpool Dishwasher Touch Up
	WP676455 Whirlpool Dishwasher Touch-Up
	WP676453 Whirlpool Dishwasher Touch-Up
	350942 Whirlpool Spray Paint
	ACCESSORY PARTS
	Enamel, Black (1 Qt. Uncut)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
1	WP3369011 Whirlpool Dishwasher Housing
2	WP3369031 Whirlpool Dishwasher Seal
3	Diaphragm
4	Ring, Diaphragm
5	Cover, Drain Valve
6	WP3368921 Whirlpool Screw
7	Seal Seat
8	WP3385557 Whirlpool Dishwasher Head Seal
9	4386996A Whirlpool Dishwasher Impeller
10	WP3369012 Whirlpool Dishwasher Disk Mount
11	Motor
12	3368922 Whirlpool Dishwasher TORX Screw
