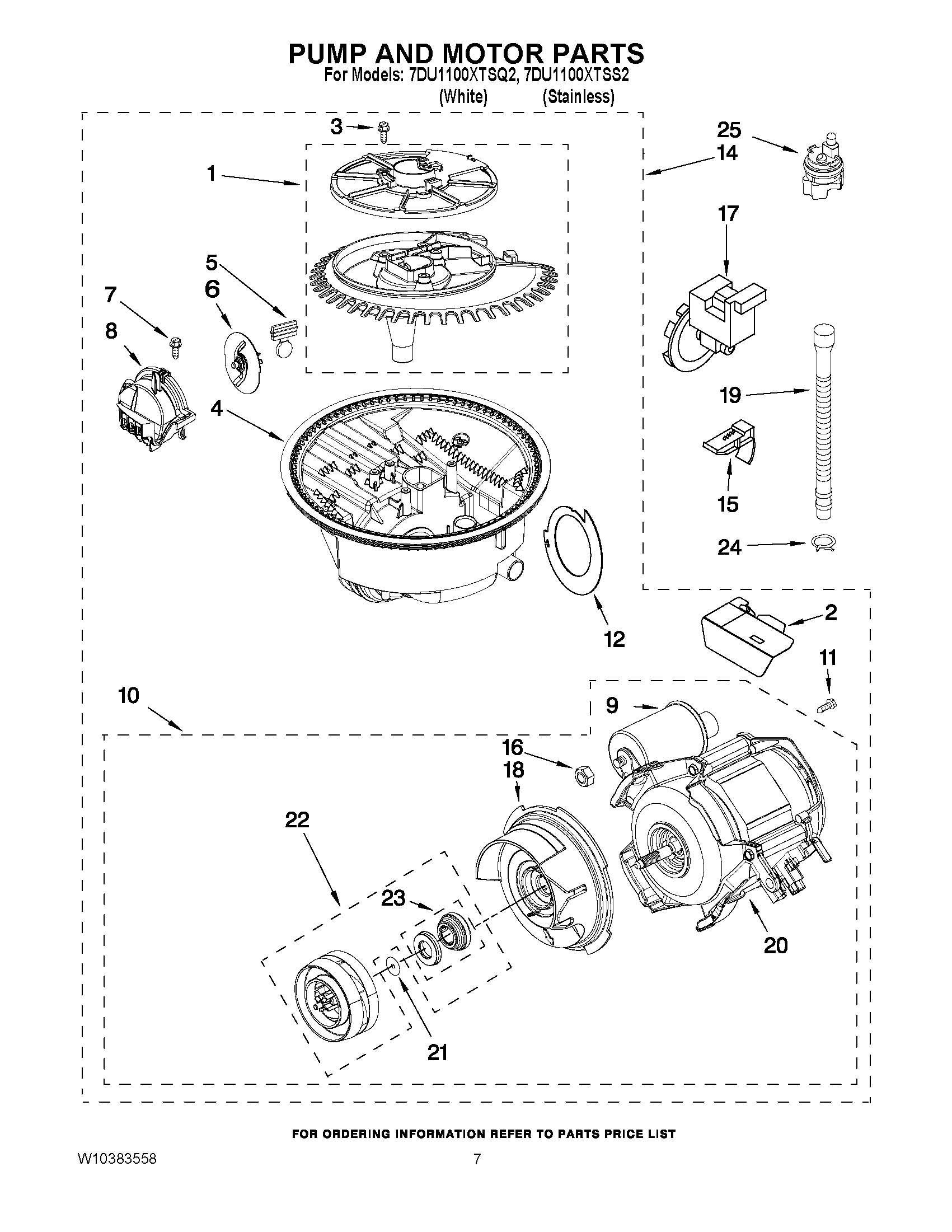

7DU1100XTSQ2 06 – PUMP AND MOTOR PARTS

7DU1100XTSQ2 06 – PUMP AND MOTOR PARTS

Written by

in

7DU1100XTSQ2 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
18193918 Whirlpool Accumulator
28283527 Whirlpool Shield
3Screw
4WP8572618 Whirlpool Dishwasher Sump Assembly
5WP8268375 Whirlpool Dishwasher Check Valve
6W10083957V Whirlpool Dishwasher Chopper
7WP9741232 Whirlpool Dishwasher Screw
8WP8531857 Whirlpool Dishwasher Protector
9WPW10334457 Whirlpool Dishwasher Capacitor
10WPW10757216 Whirlpool Dishwasher Pump Motor
113400217 Whirlpool Dishwasher Screw
12W10084567 Whirlpool Dishwasher Screen
14W10806701 Whirlpool Dishwasher Drain Pump and Motor
15WPW10300599 Whirlpool Dishwasher Sump Tab
168533949 Whirlpool Dishwasher Nut
17WPW10348269 Whirlpool Washer Drain Pump
18W11622922 Whirlpool Dishwasher Volute
198269144A Whirlpool Dishwasher Drain Hose
20W10200940 Whirlpool Dishwasher Pump Motor
21WP8531018 Whirlpool Dishwasher Washer
238193951A Whirlpool Impeller Assembly
24WP8269146 Whirlpool Dishwasher Clamp
25WPW10705575 Whirlpool Dishwasher Sensor
