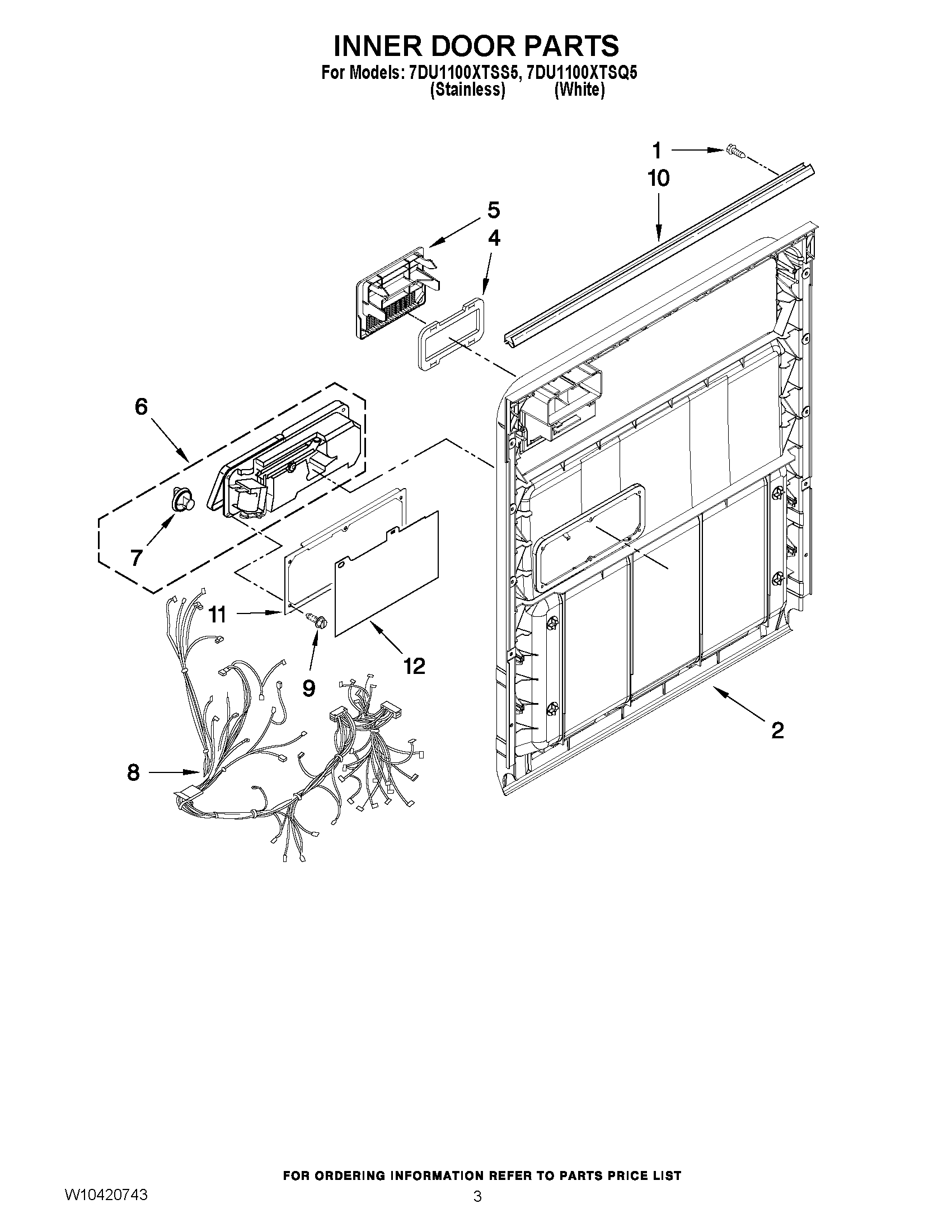

7DU1100XTSQ5 03 – INNER DOOR PARTS

7DU1100XTSQ5 03 – INNER DOOR PARTS

Written by

in

7DU1100XTSQ5 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10254546 Whirlpool Dishwasher Inner Door
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WP8558307 Whirlpool Rinse Aid Dispenser Cap
8WIRING HARNESS MAIN
9WPW10177098 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12W10385977 Whirlpool Dishwasher Cover Assembly
