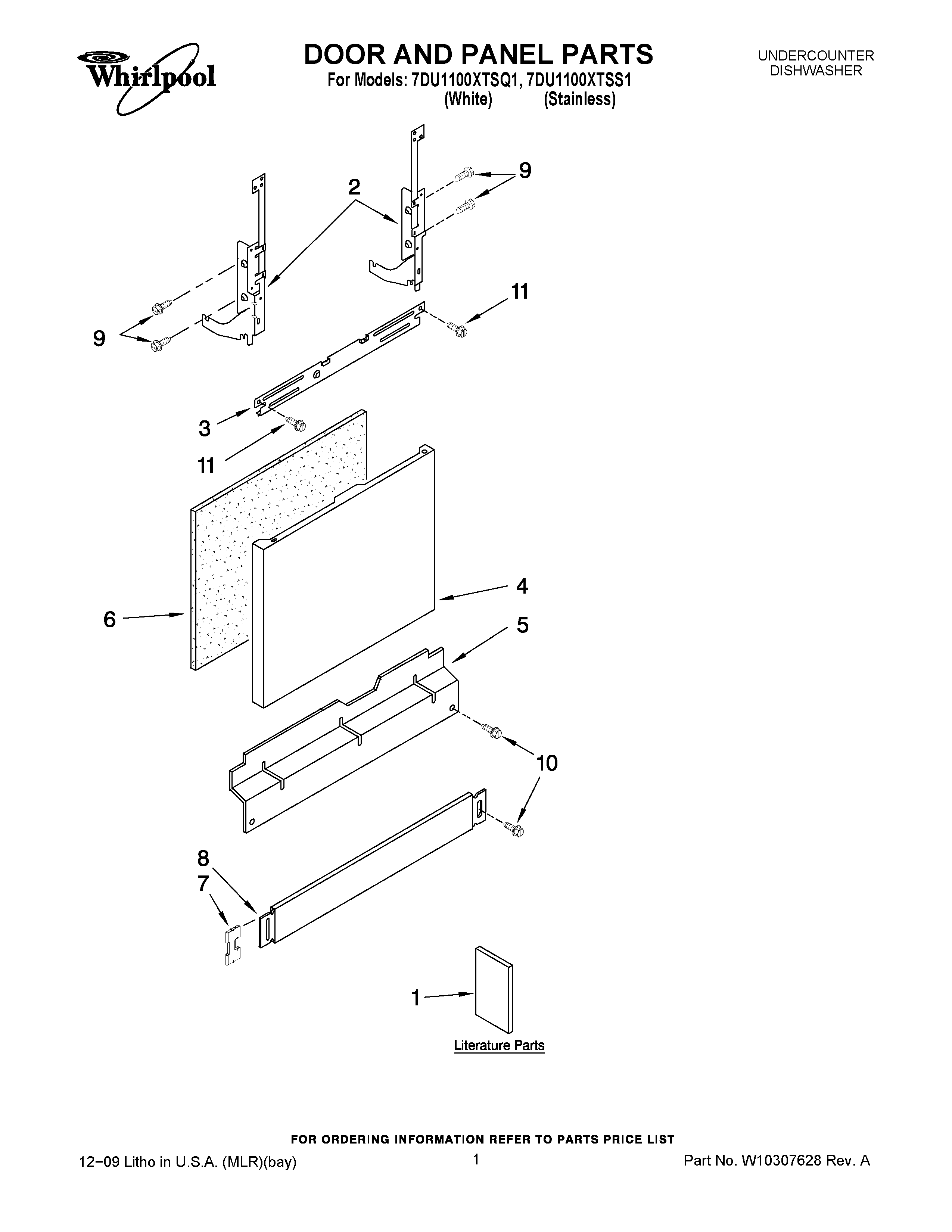

7DU1100XTSS1 01 – DOOR AND PANEL PARTS

7DU1100XTSS1 01 – DOOR AND PANEL PARTS

Written by

in

7DU1100XTSS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
4W10428852 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8269016 Whirlpool Clip Assembly
8WP8573287 Whirlpool Dishwasher Toe Panel
9WPW10109200 Whirlpool Screw
10WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP302868 Whirlpool Screw
11SCREW
