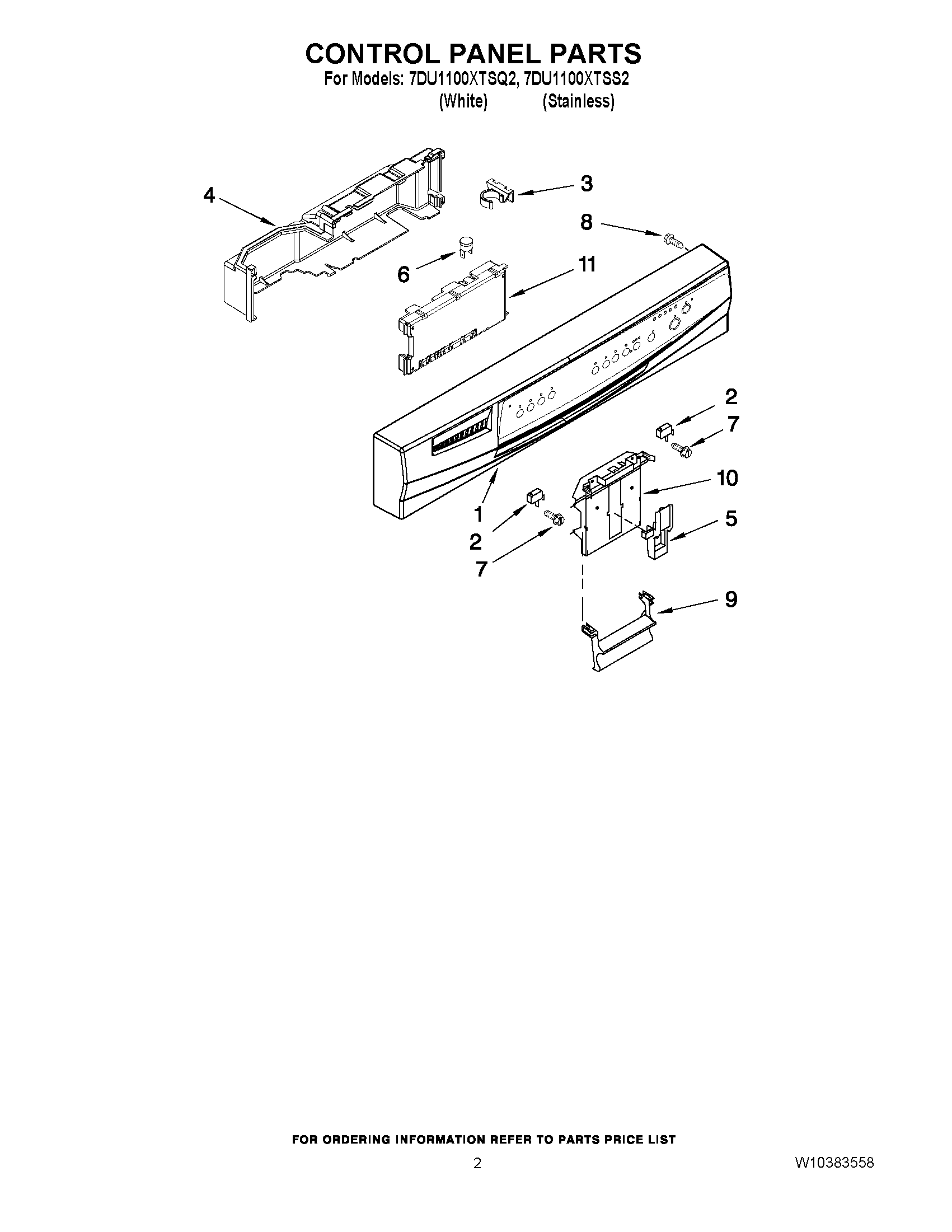

7DU1100XTSS2 02 – CONTROL PANEL PARTS

7DU1100XTSS2 02 – CONTROL PANEL PARTS

Written by

in

7DU1100XTSS2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10459139 Whirlpool Dishwasher Control Panel
1WPW10459140 Whirlpool Dishwasher Control Panel
2WP8269209 Whirlpool Door Switch
3Clip, BI-Metal
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348413 Whirlpool Dishwasher Screw
9WP8534984 Whirlpool Dishwasher Handle
9WP8534985 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
