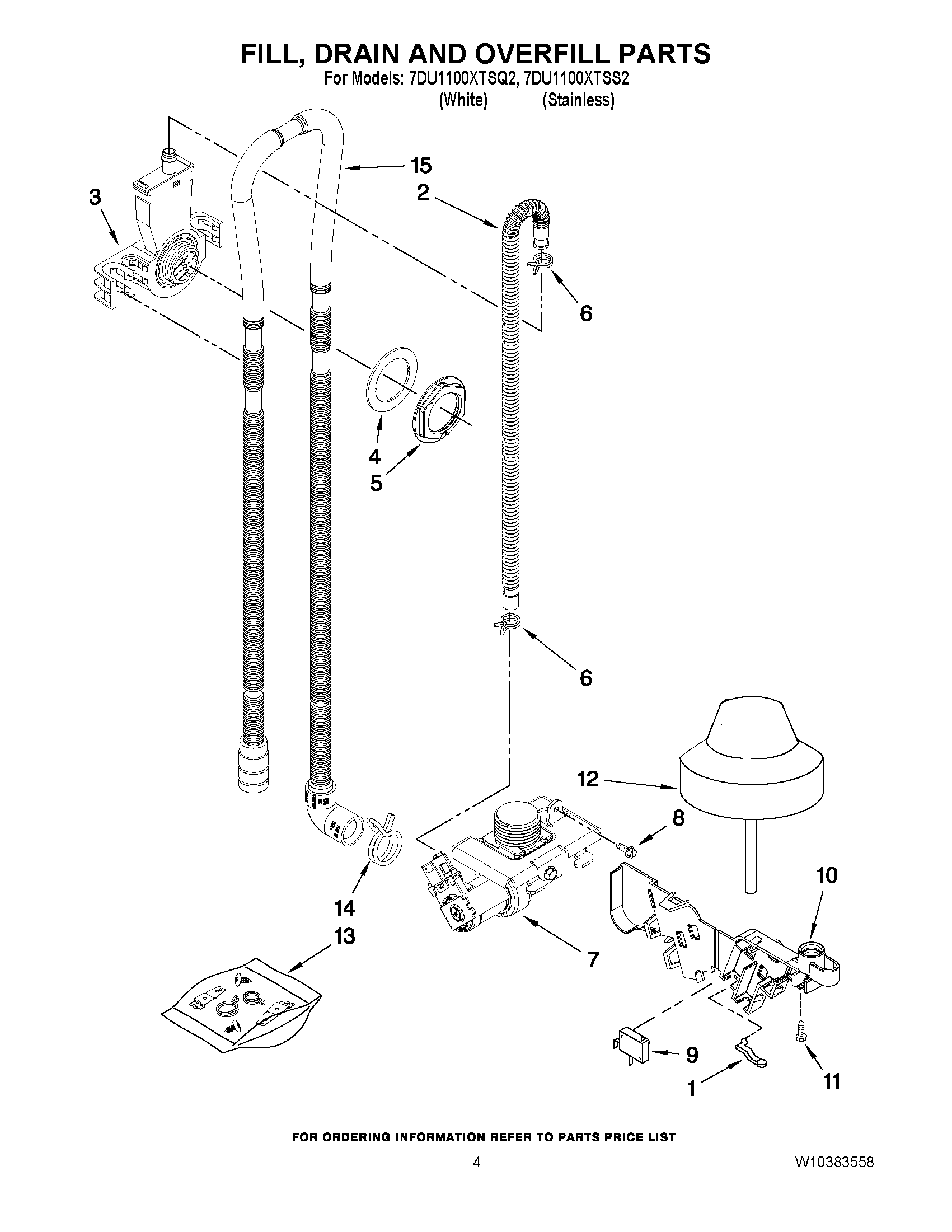

7DU1100XTSS2 04 – FILL, DRAIN AND OVERFILL PARTS

7DU1100XTSS2 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

7DU1100XTSS2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WPW10102495 Whirlpool Dishwasher Switch
10WPW10175383 Whirlpool Dishwasher Standpipe
11WP304231 Whirlpool Dishwasher Screw
12WP8268913 Whirlpool Dishwasher Float Assembly
13WPW10292152 Whirlpool Hardware Kit
14WP356138 Whirlpool Hose Clamp
15WPW10545278 Whirlpool Drain Hose
