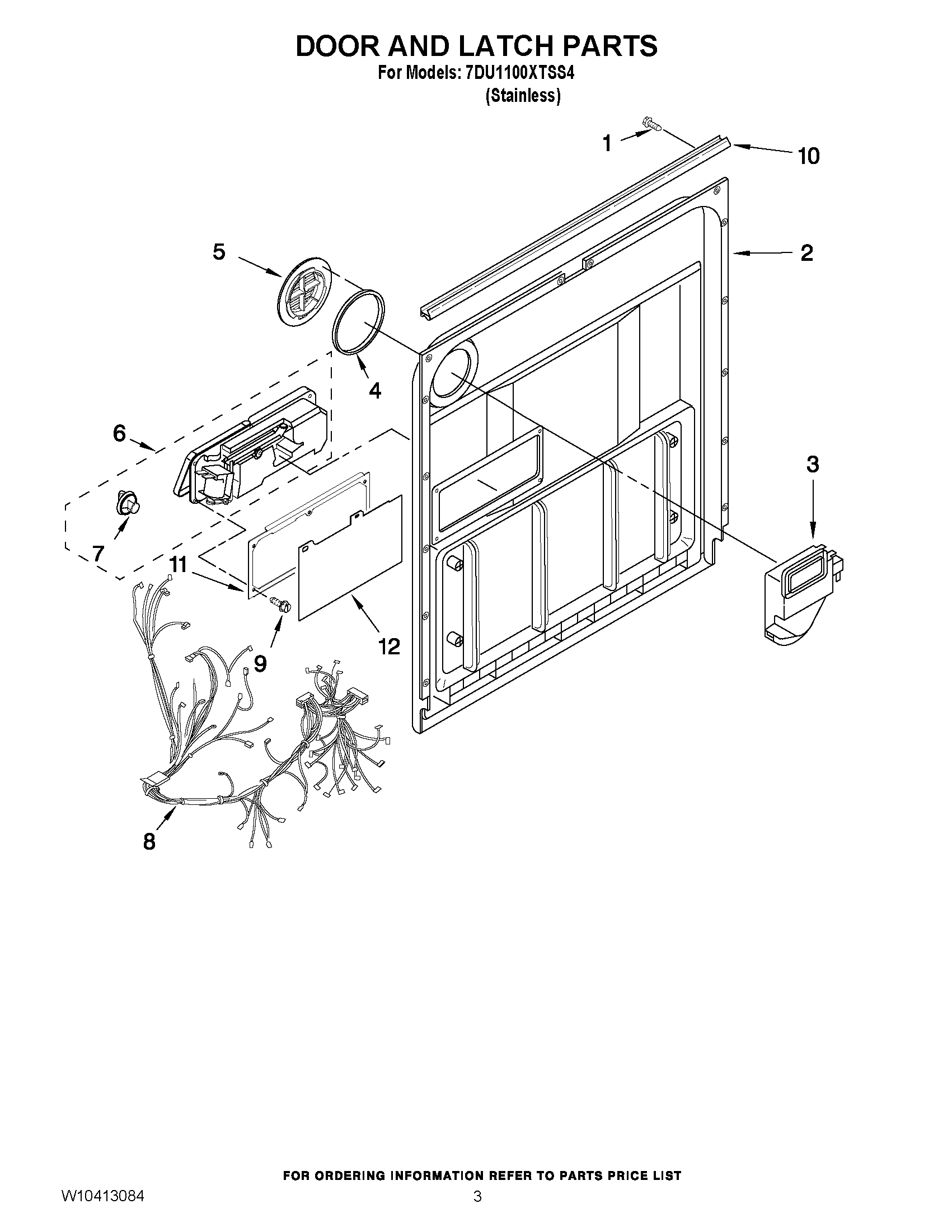

7DU1100XTSS4 03 – DOOR AND LATCH PARTS

7DU1100XTSS4 03 – DOOR AND LATCH PARTS

Written by

in

7DU1100XTSS4 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8269311 Whirlpool Dishwasher Inner Door
3WP8558980 Whirlpool Dishwasher Vent
4WP8269259 Whirlpool Air Vent Gasket
5Deflector, Vent (Also Order Item 6)
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WP8558307 Whirlpool Rinse Aid Dispenser Cap
8WIRING HARNESS MAIN
9WPW10177098 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WP8531865 Whirlpool Dishwasher Door Shield
