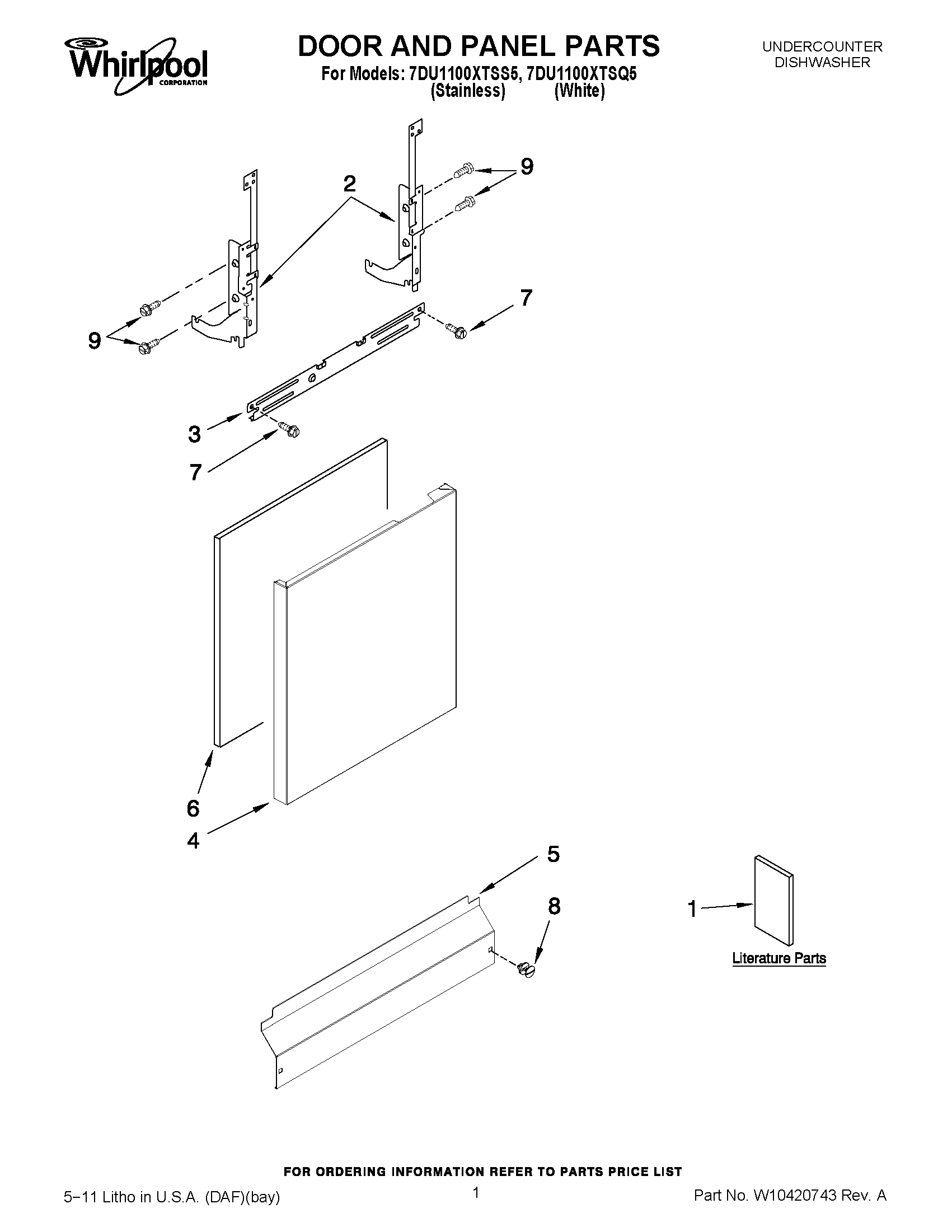

7DU1100XTSS5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (SPANISH)
1Guide, Use & Care
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10274902 Whirlpool Dishwasher Control Panel
4WPW10274896 Whirlpool Dishwasher Panel
5WPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7SCREW
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WPW10109200 Whirlpool Screw
