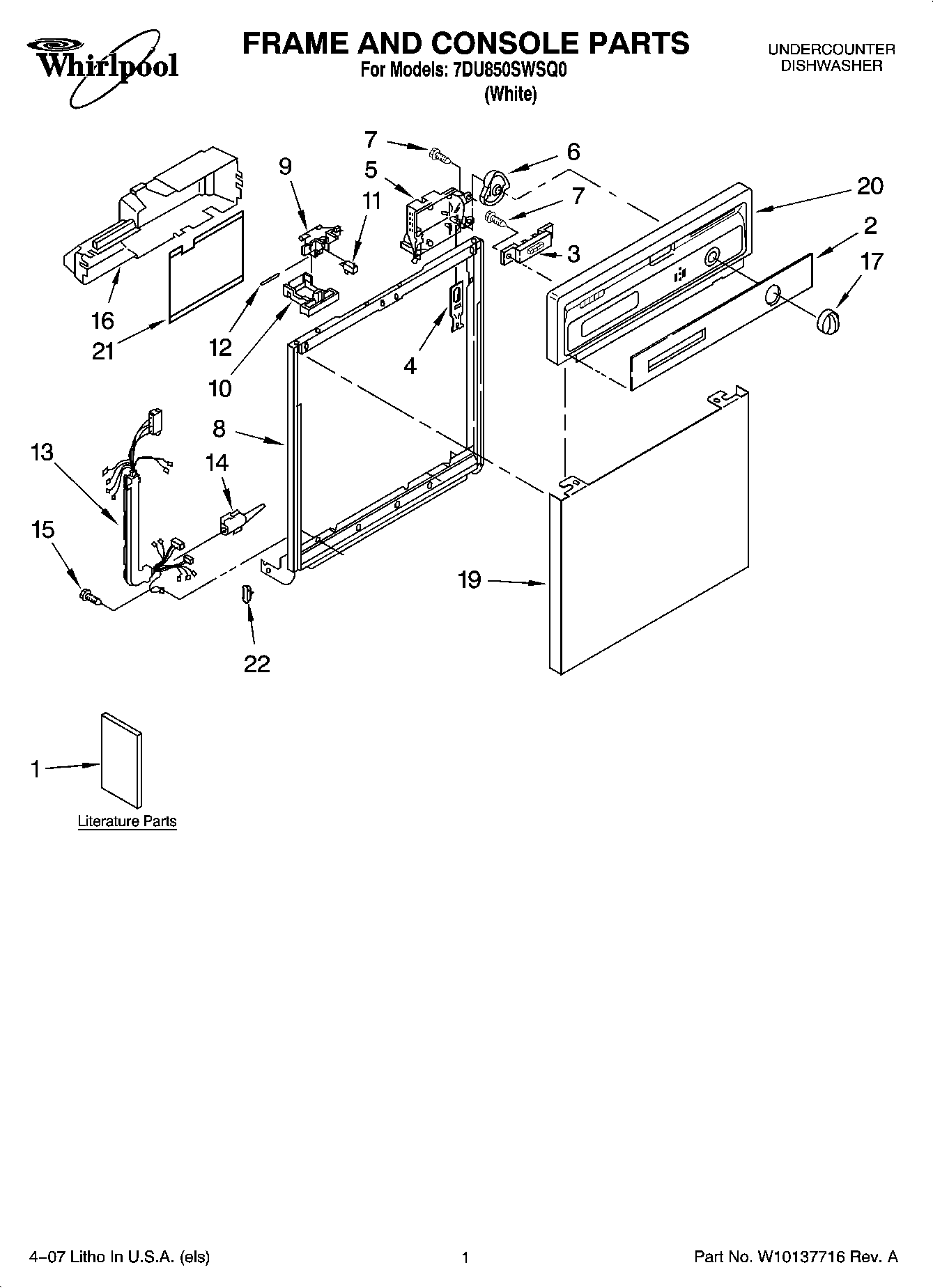

7DU850SWSQ0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	Guide, Use & Care
2	Insert, Console (White)
3	8269366 Whirlpool Dishwasher PB Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	WPW10199587 Whirlpool Dishwasher Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch White
11	Shield, Switch
12	Pin, Switch (2)
13	8573183 Whirlpool Dishwasher Wire Harness
14	3376405 Whirlpool Dishwasher Elbow
15	WP3400892 Whirlpool Dishwasher Screw
16	Cover, Timer
17	8275308 Whirlpool Dishwasher Timer Knob
19	Panel Front (White Model)
20	Console (Includes Item 2) (White)
21	Shield, Control Cover
22	WP3373234 Whirlpool Dishwasher Bearing
