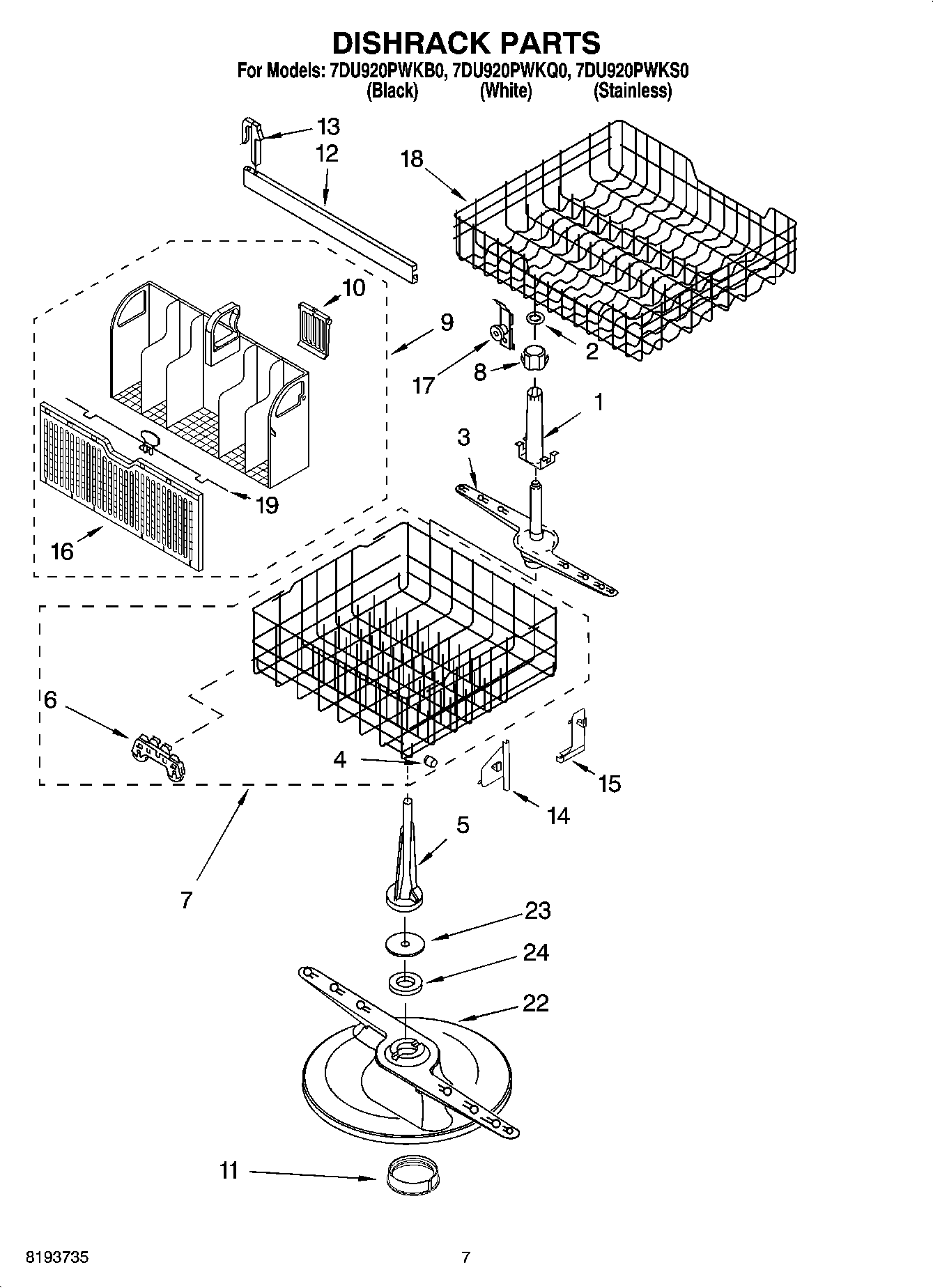

7DU920PWKS0 05 – DISHRACK PARTS

Products

Position	Product
1	Support, Arm (Also Order Items 2 & 8)
2	Clip
3	Spray Arm, Upper (Also Order Item 8)
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7	W10161215 Whirlpool Dishwasher Dishrack
8	Support Lock, Spray Arm
9	Silverware Basket Assembly
10	Lid, Silverware Basket
11	WP3376846 Whirlpool Seal
12	WP3385089 Whirlpool Track
13	WP8565925 Whirlpool Slide Rail Stop
14	8268867 Whirlpool Dishwasher Clip
15	8268868 Whirlpool Dishwasher Clip
16	Door, Silverware Basket
17	WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Latch Assembly
22	WP8268874 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
