7ED0GTQXKQ02 11 – CONTROL PARTS, PARTS NOT ILLUSTRATED

7ED0GTQXKQ02 11 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Written by

in

7ED0GTQXKQ02 11 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
WPL ARI16484A6
Ice Container Assembly
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI16488A2
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI16487A4
511873 Whirlpool Refrigerator Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest
WPL ARI16485A6
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI16486A3
Golden Harvest (Uncut)

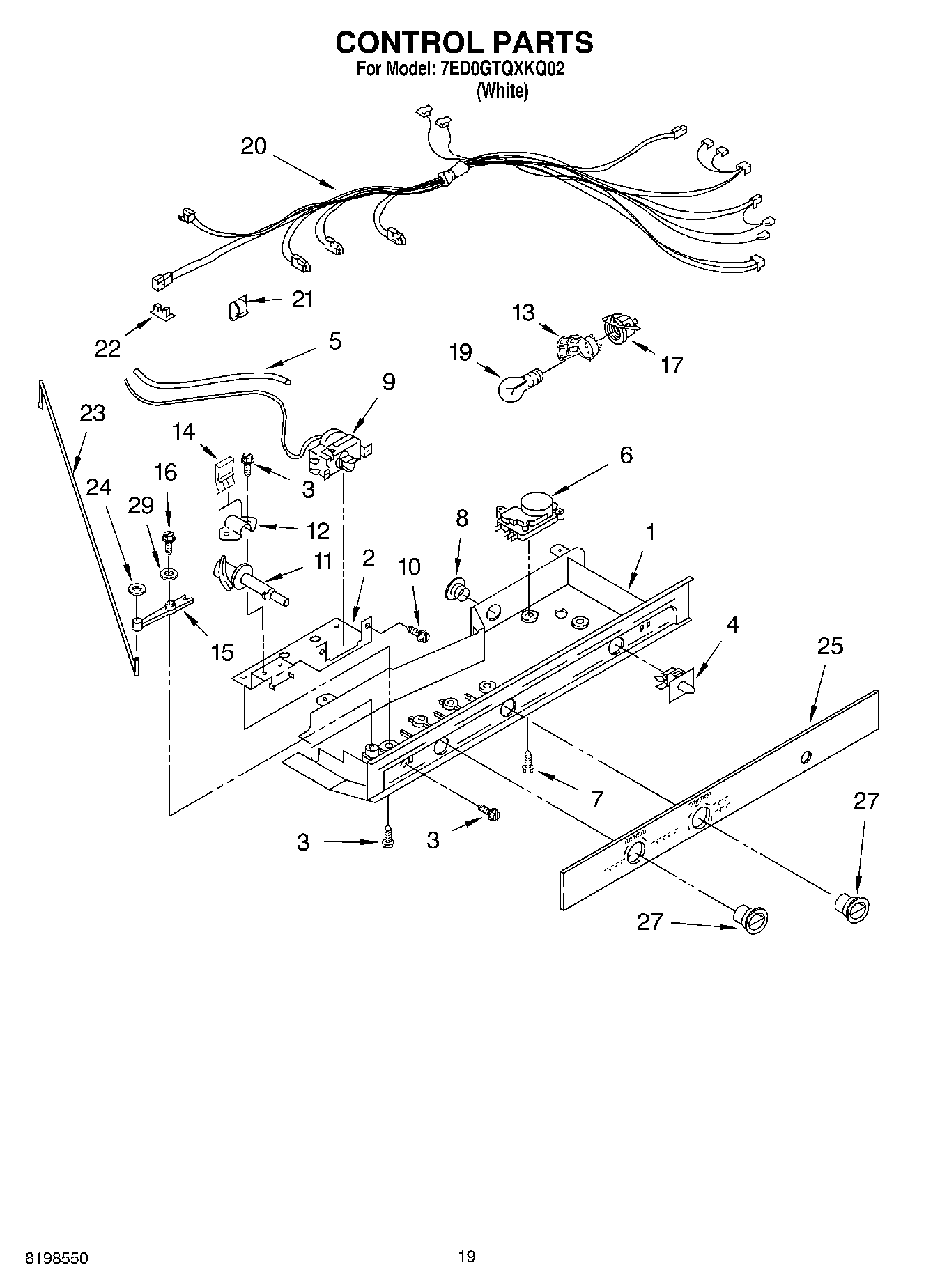

1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10822278 Whirlpool Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
13WP2175210 Whirlpool Refrigerator Shroud
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
