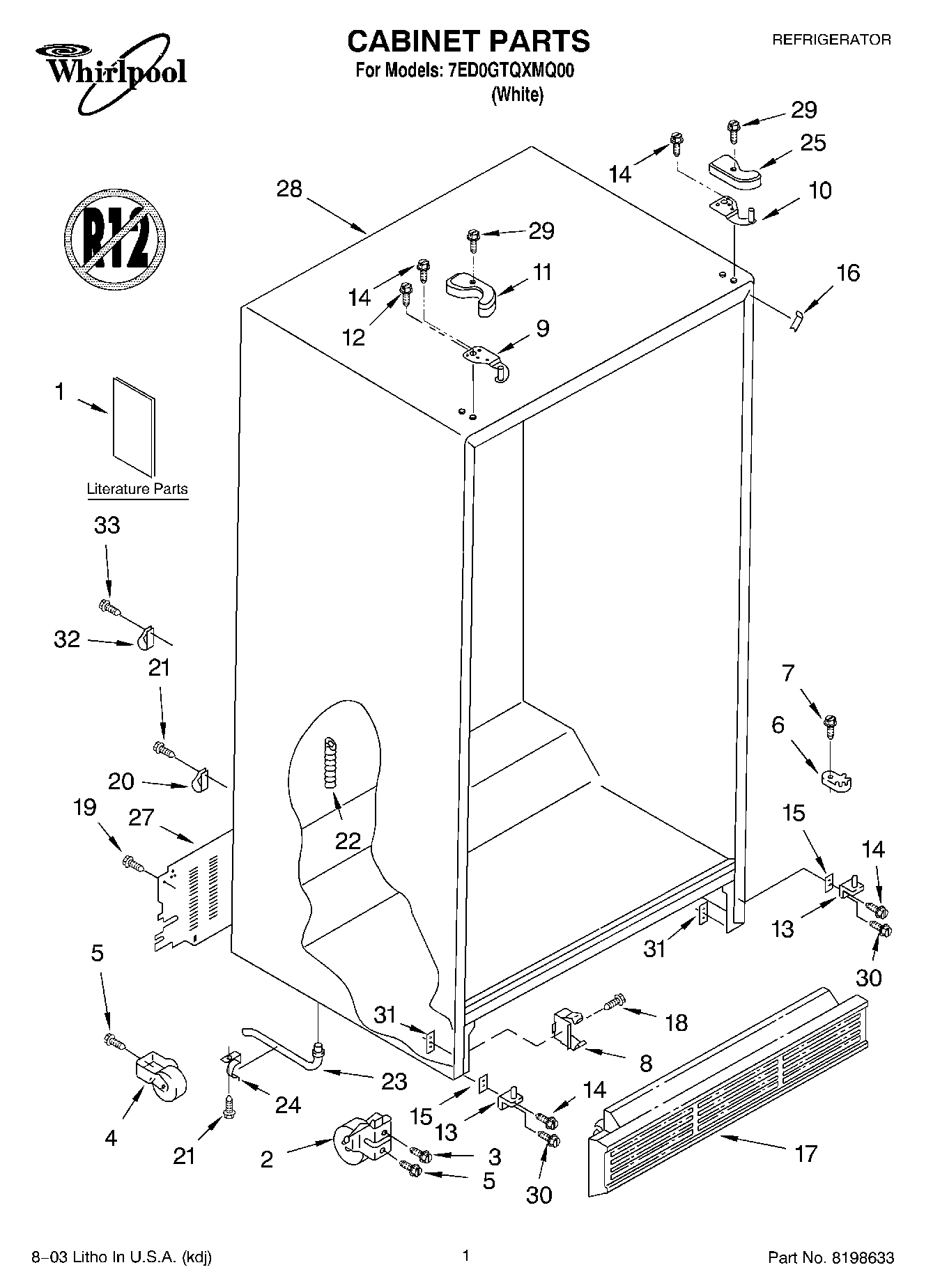

7ED0GTQXMQ00 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Enegry Guide)
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Service & Wiring Sheet)
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	WP489497 Whirlpool Screw
15	WP2209697 Whirlpool Refrigerator Shim
16	Filler, Wrapper (White)
17	W10804014 Whirlpool Refrigerator Grille
18	WP489128 Whirlpool Refrigerator Screw
20	WP488366 Whirlpool Refrigerator Clamp
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	WP1108438 Whirlpool Refrigerator Extension
24	WP1108439 Whirlpool Refrigerator Clip
25	WP2203408W Whirlpool Refrigerator Cover
27	Cover, Unit
28	Cabinet (Not A Serviceable Part)
29	WP8281227 Whirlpool Screw
30	W10856122 Whirlpool Refrigerator Screw
31	WP2304249 Whirlpool Refrigerator Plate
32	489348 Whirlpool Refrigerator Tube Clamp
33	W11693756 Whirlpool Screw Assembly
