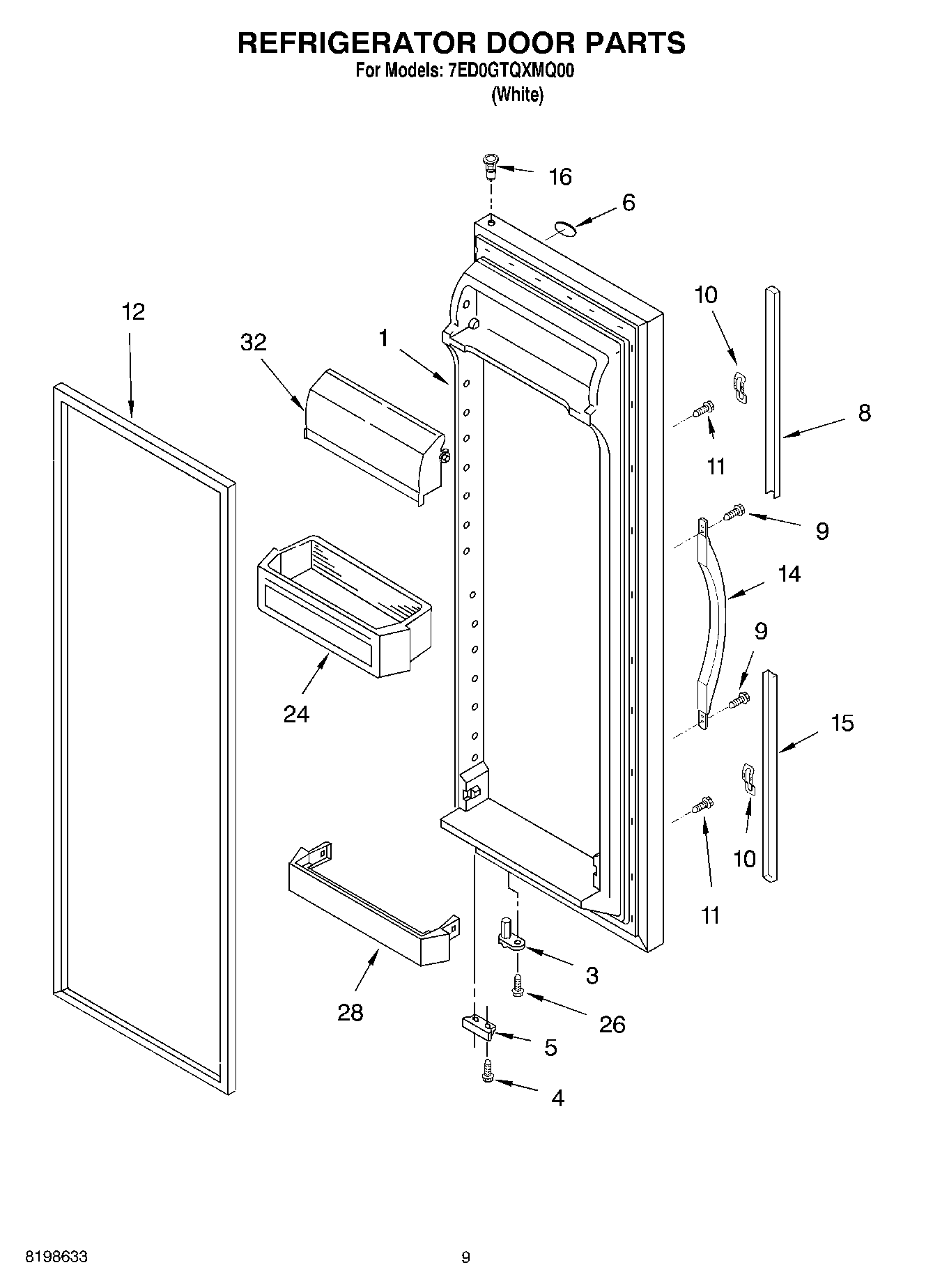

7ED0GTQXMQ00 06 – REFRIGERATOR DOOR PARTS

7ED0GTQXMQ00 06 – REFRIGERATOR DOOR PARTS

Written by

in

7ED0GTQXMQ00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5WP2206629B Whirlpool Refrigerator Bracket
6WP2213265 Whirlpool Refrigerator Nameplate
8Extension, Top (White)
9WP489491 Whirlpool Refrigerator Screw
10WP2195327 Whirlpool Refrigerator Clip
11WP3400852 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Handle, Center (White)
15Extension, Bottom (White)
16WP2182181 Whirlpool Refrigerator Thimble
24WP2187172 Whirlpool Refrigerator Door Shelf Bin
26WP3400012 Whirlpool Refrigerator Screw
28WP2177962K Whirlpool Refrigerator Door Trim
32WP2256101 Whirlpool Dairy Door
