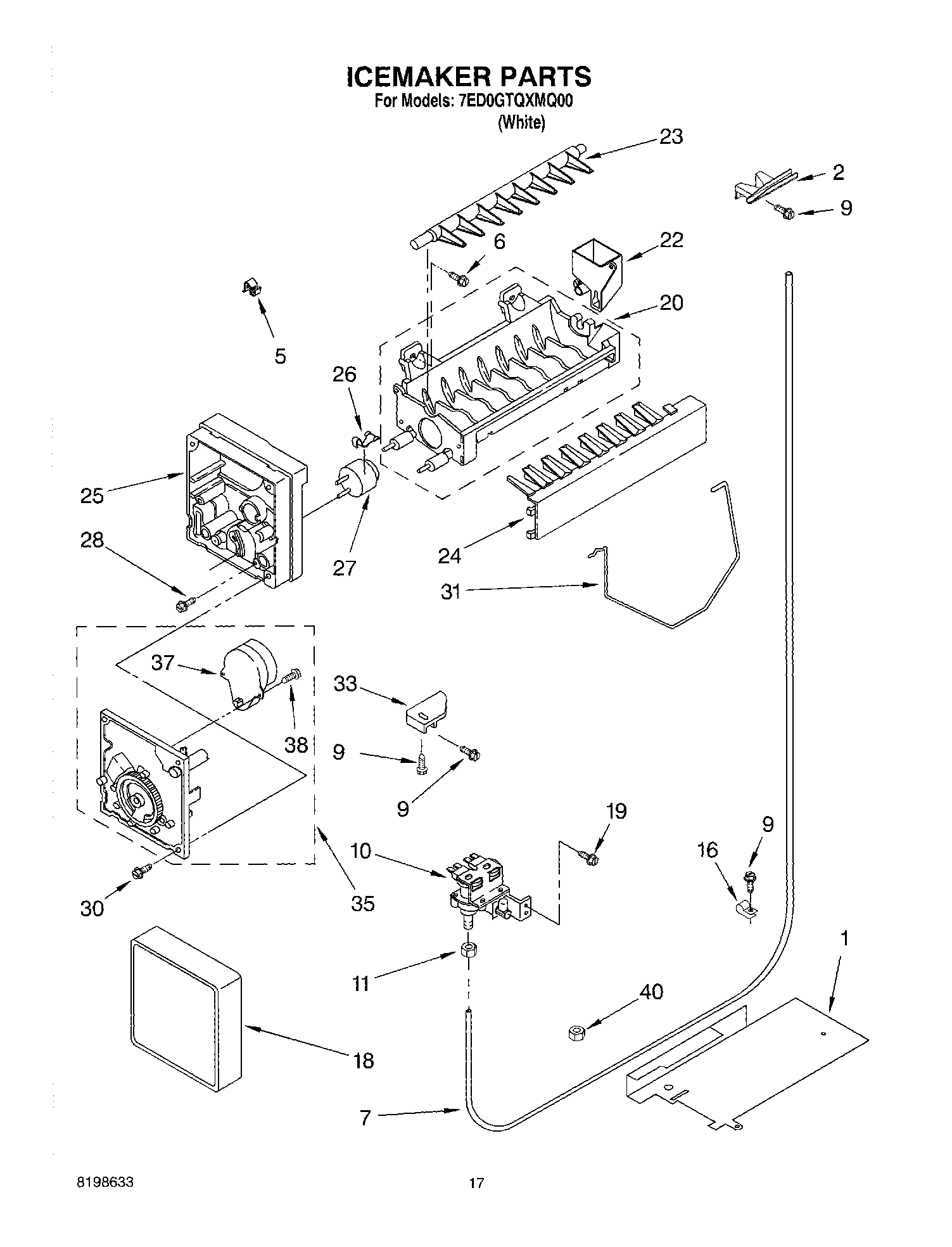

7ED0GTQXMQ00 10 – ICEMAKER PARTS

Products

Position	Product
1	2256178 Whirlpool Shield Assembly
2	W11505385 Whirlpool Refrigerator Chute
5	WP628379 Whirlpool Refrigerator Clip
6	WP488163 Whirlpool Refrigerator Screw
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10853654 Whirlpool Water Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
