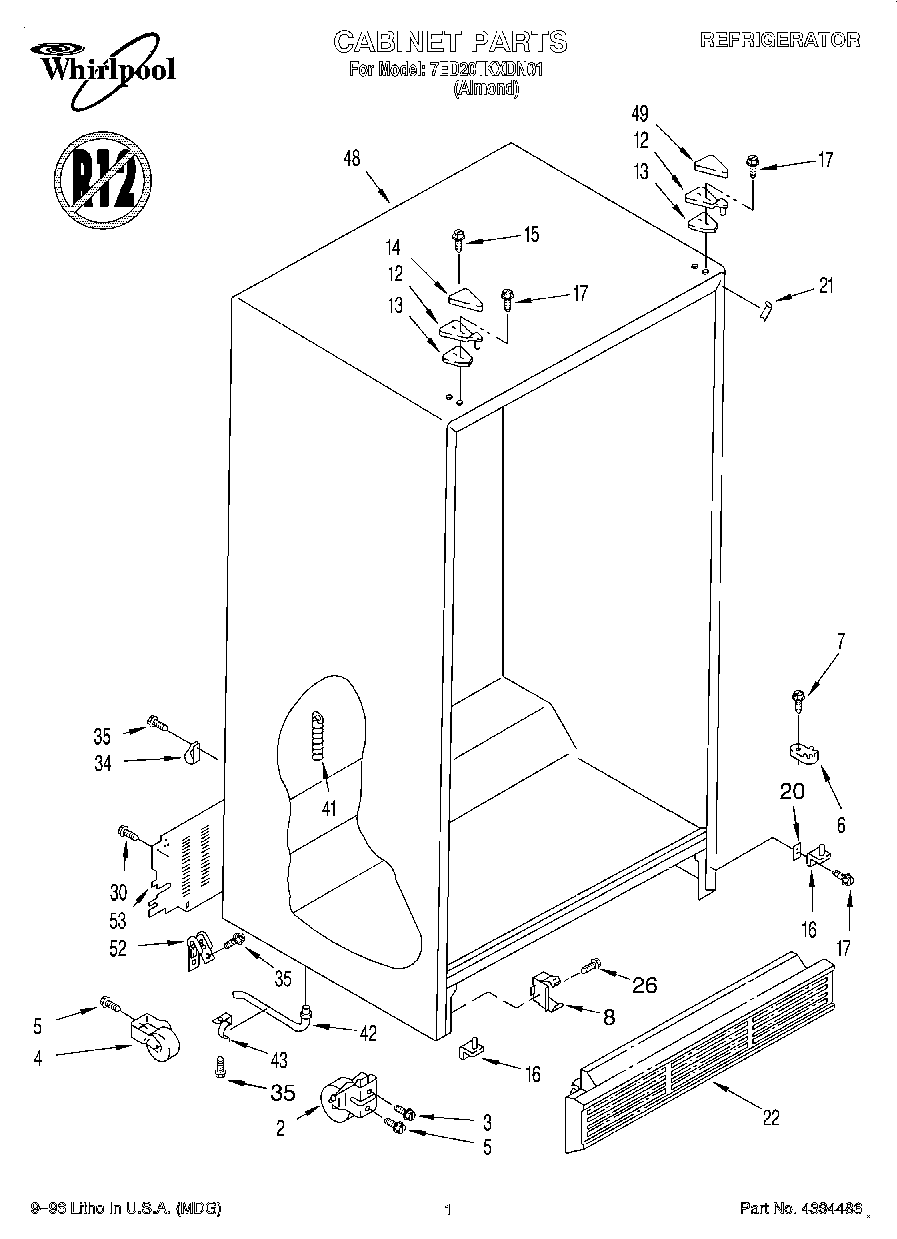

7ED20TKXDN01 01 – CABINET

Products

Position	Product
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	WP1129262 Whirlpool Refrigerator Cover
15	Screw
16	8201707 Whirlpool Door Hinge
17	WP999367 Whirlpool Refrigerator Screw
20	WP2181911 Whirlpool Refrigerator Shim
21	Filler, Wrapper (Almond)
22	Grille (Almond)
26	WP489478 Whirlpool Refrigerator Screw
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
53	WP2188756 Whirlpool Refrigerator Unit Cover
