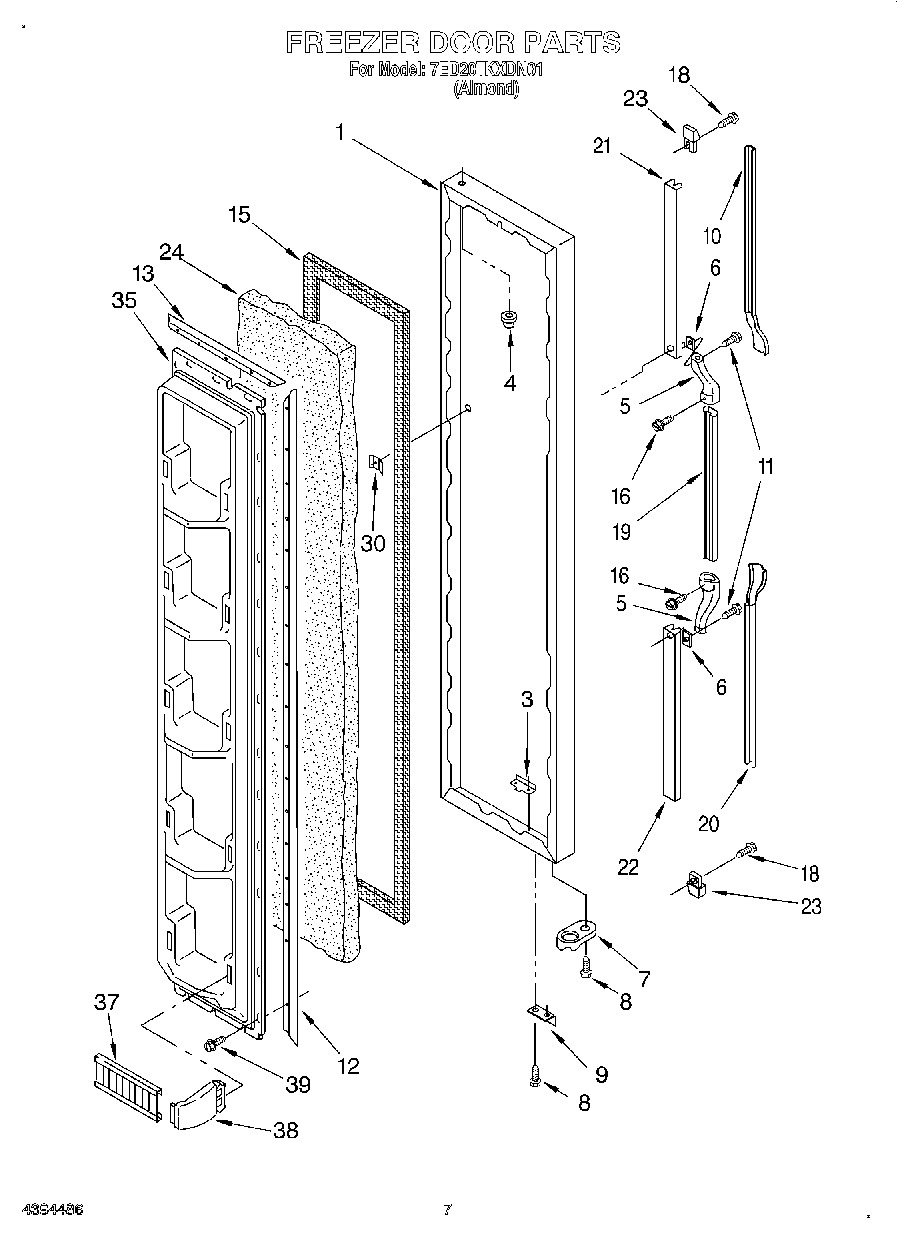

7ED20TKXDN01 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Almond (Also Order Item 24))
3	Tap, Plate
4	Cap, Hinge Sleeve (2)
5	End Cap, Center Handle
6	Shim
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP999367 Whirlpool Refrigerator Screw
9	Bracket, Door Stop
10	Insert, Handle (Almond)
11	WP489463 Whirlpool Refrigerator Screw
12	Retainer, Gasket
13	Retainer, Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
16	Screw
18	Screw
19	Handle, Center (Almond)
20	Insert, Handle (Almond)
21	Retainer, Insert
22	Retainer, Insert (Bottom)
23	End Cap (2)
24	WPL 876029
30	Screw Anchor (2)
35	Panel, Interior Door
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
