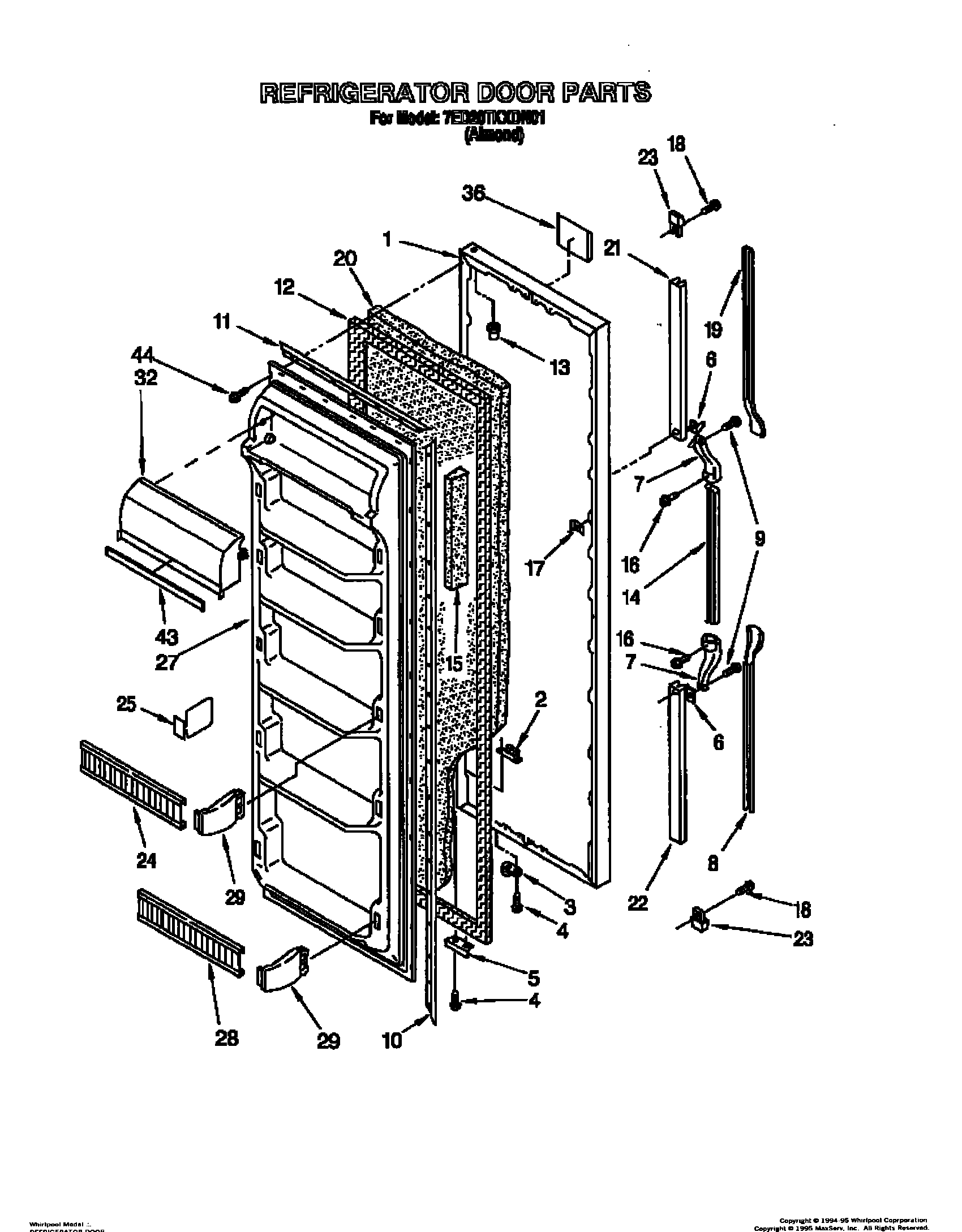

7ED20TKXDN01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP999367 Whirlpool Refrigerator Screw
5	Bracket, Door Stop
6	Shim
7	End Cap, Center Handle
8	Insert, Handle (Almond)
9	WP489463 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (Almond)
15	Reinforcement, Shelf
16	Screw
17	Screw Anchor (2)
18	Screw
19	Insert, Handle (Almond)
20	WPL 876029
21	Retainer, Insert
22	Retainer, Insert (Bottom)
23	End Cap (2)
24	Shelf Bin (2)
25	Divider-Door
27	Panel, Interior Door
28	Shelf Bin (2)
29	WP2196189 Whirlpool Shelf Retainer Bar
29	WP2196190 Whirlpool Shelf Retainer Bar Support
32	Door, Compartment
36	Nameplate (Almond Model)
43	Trim, Compartment Door
44	WP489069 Whirlpool Compactor Screw
