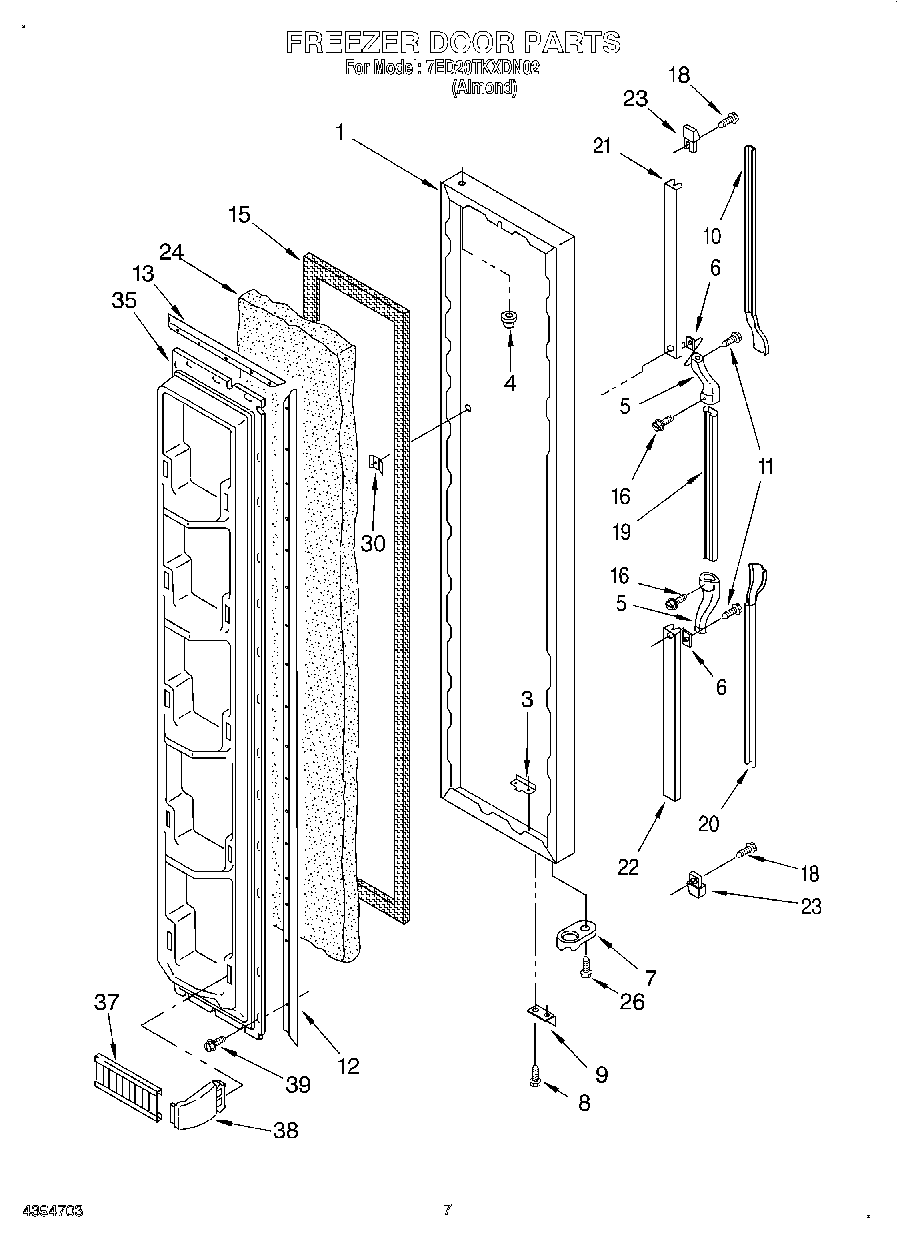

7ED20TKXDN02 05 – FREEZER DOORadmin2025-04-26T12:37:52+00:007ED20TKXDN02 05 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Almond (Also Order Item 24)) |
| 3 | Tap, Plate |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | End Cap, Center Handle |
| 6 | Shim |
| 7 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 8 | WP489483 Whirlpool Screw |
| 9 | Bracket, Door Stop (Chrome) |
| 10 | Insert, Top (Almond) |
| 11 | WP489463 Whirlpool Refrigerator Screw |
| 12 | Retainer, Gasket |
| 13 | Retainer, Gasket |
| 15 | 2188405A Whirlpool Refrigerator Door Gasket |
| 16 | Screw |
| 18 | Screw |
| 19 | Handle, Center (Almond) |
| 20 | Insert, Bottom (Almond) |
| 21 | Insert Retainer (Top) |
| 22 | Retainer, Bottom |
| 23 | End Cap (2) |
| 24 | WPL 876029 |
| 26 | WP3400012 Whirlpool Refrigerator Screw |
| 30 | Screw Anchor (2) |
| 35 | Panel, Interior Door |
| 37 | Trim, Door Shelf |
| 38 | WP2196100 Whirlpool Shelf Retainer Bar Support |
| 39 | WP489069 Whirlpool Compactor Screw |
