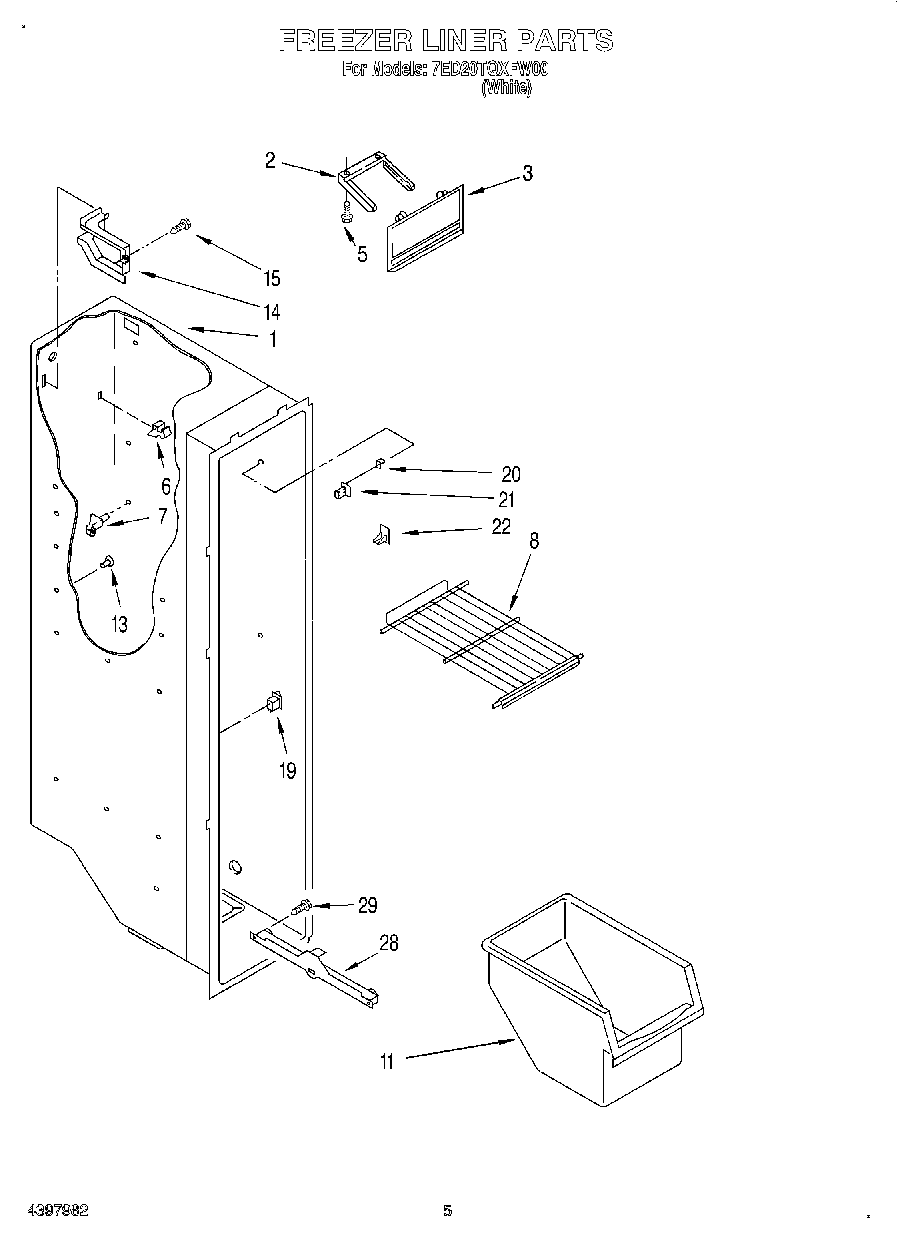

7ED20TQXFW00 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8Shelf (1)
11Bin, Freezer
13Grommet
14Cover, Wiring
15SCREW
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Support
21Stud, Front R.S.
22Stud, Rear R.S.
28Slide, Basket (Left Side)
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
