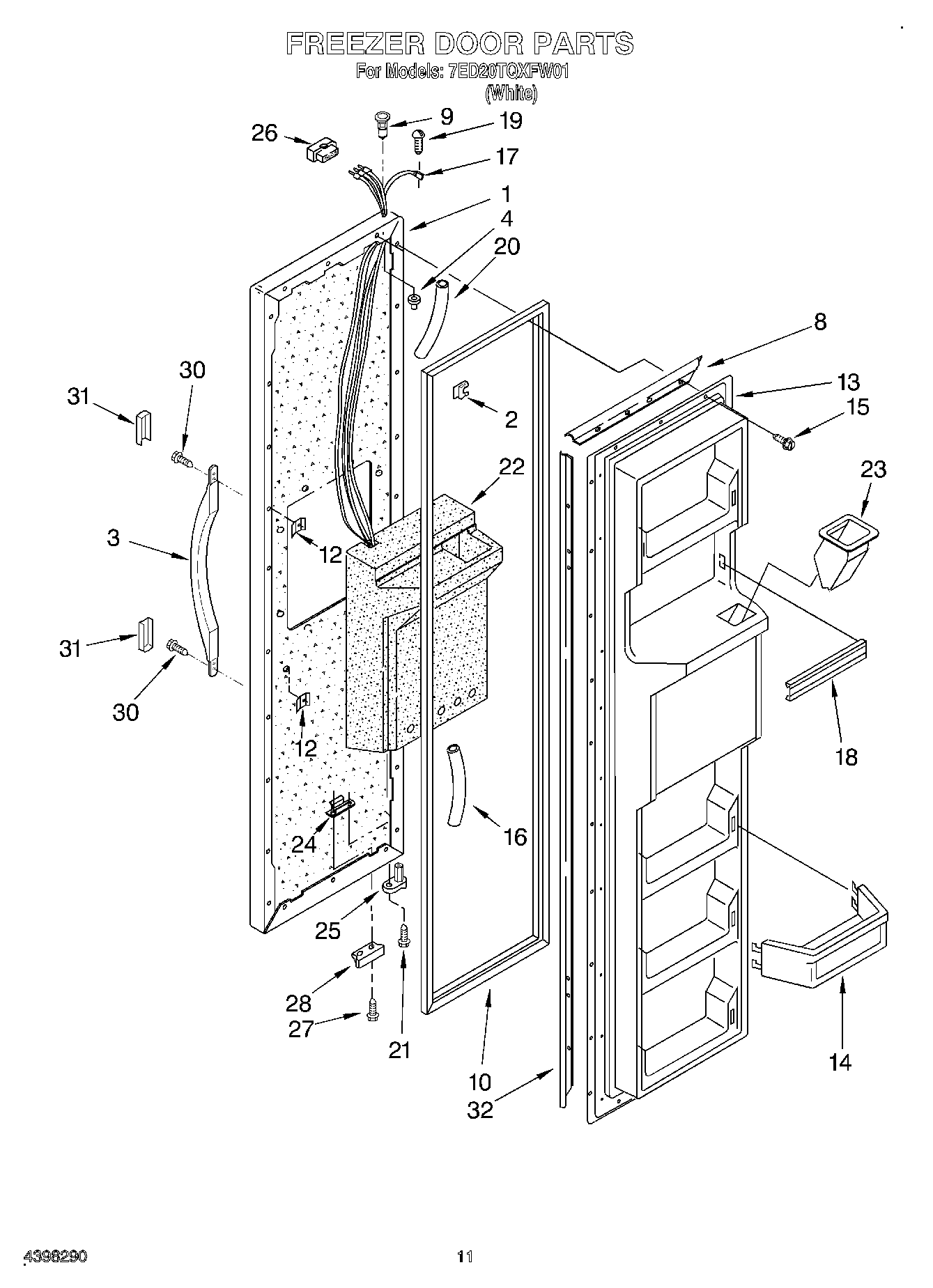

7ED20TQXFW01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (White)
2Clip
3Handle, Center (White)
4Cap, Hinge Sleeve (2)
8Retainer, Gasket
9WP2182181 Whirlpool Refrigerator Thimble
102188405A Whirlpool Refrigerator Door Gasket
12WP939101 Whirlpool Refrigerator Plate
13Panel, Interior Door
14Trim, Door Shelf (4)
15WP489069 Whirlpool Compactor Screw
16Tube, Water Line
17Wire Harness
18TRIM-DOOR
19WP489128 Whirlpool Refrigerator Screw
20Tube, Door Wiring
21WP3400012 Whirlpool Refrigerator Screw
22Insulation, Dispenser
23Chute, Ice
24SCREW PLATE
25WP2182179 Whirlpool Cam Closer
26WP2154473 Whirlpool Refrigerator Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop (Chrome)
30WP489491 Whirlpool Refrigerator Screw
31WP2193353W Whirlpool Refrigerator Trim Handle
32Retainer, Gasket
