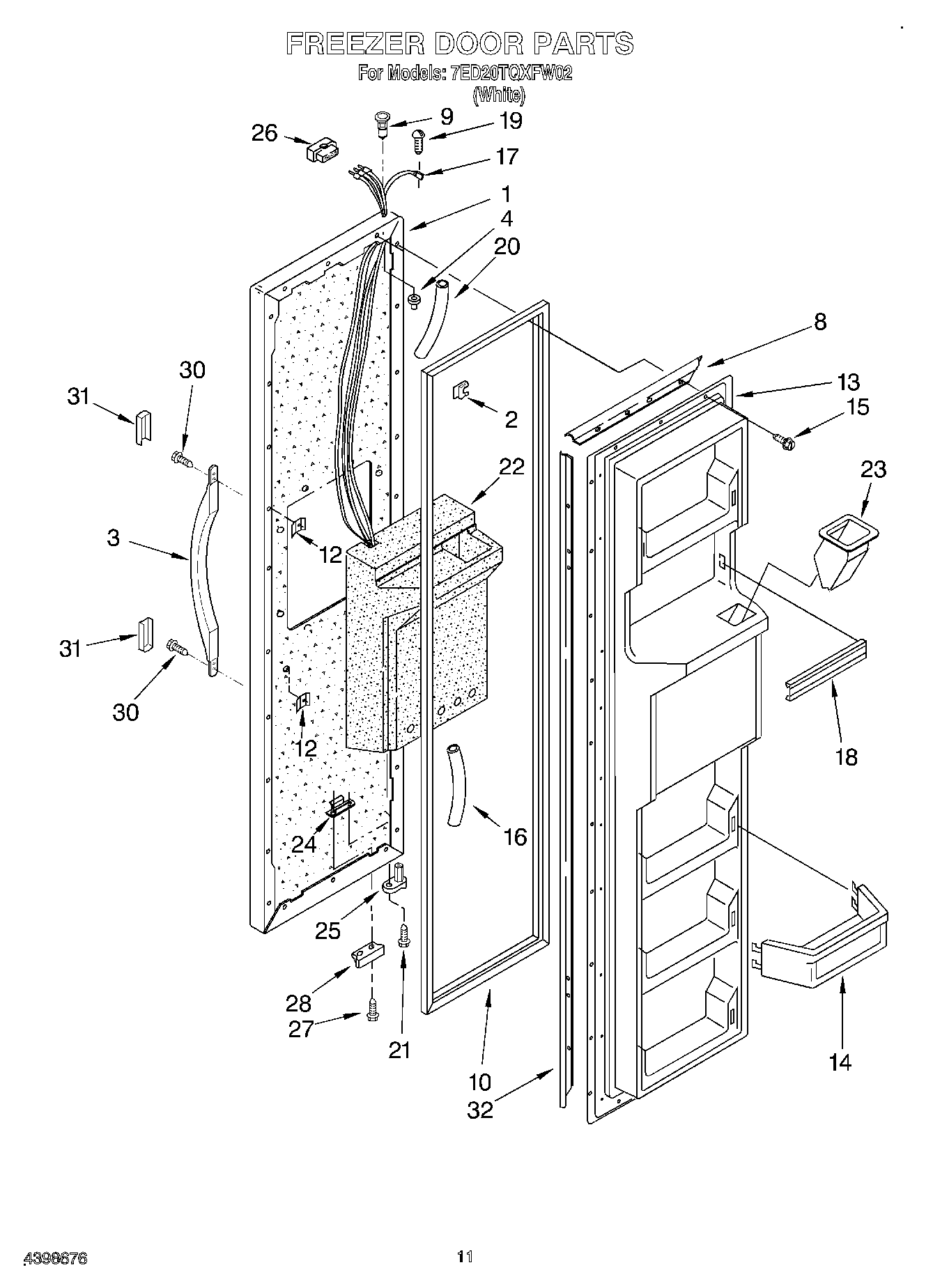

7ED20TQXFW02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
2	Clip
3	Handle, Center (White)
4	Cap, Hinge Sleeve (2)
8	Retainer, Gasket
9	WP2182181 Whirlpool Refrigerator Thimble
10	2188405A Whirlpool Refrigerator Door Gasket
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
14	Trim, Door Shelf (4)
15	WP489069 Whirlpool Compactor Screw
16	Tube, Water Line
17	Wire Harness
18	TRIM-DOOR
19	WP489128 Whirlpool Refrigerator Screw
20	Tube, Door Wiring
21	WP3400012 Whirlpool Refrigerator Screw
22	Insulation, Dispenser
23	Chute, Ice
24	SCREW PLATE
25	WP2182179 Whirlpool Cam Closer
26	WP2154473 Whirlpool Refrigerator Connector
27	WP489483 Whirlpool Screw
28	Bracket, Door Stop (Chrome)
30	WP489491 Whirlpool Refrigerator Screw
31	WP2193353W Whirlpool Refrigerator Trim Handle
32	Retainer, Gasket
